Current in an RL-circuit The accompanying diagram represents an electrical circuit whose total resistance is a constant R ohms and whose self-inductance, shown as a coil, is L henries, also a constant. There is a switch whose terminals at a and b can be closed to connect a constant electrical source of V volts. From Section 9.2, we have $$L \frac{d i}{d t}+R i=V$$ where i is the current in amperes and t is the time in seconds. Use a phase line analysis to sketch the solution curve assuming that the switch in the $R L$ -circuit is closed at time $t=0$ . What happens to the current as $t \rightarrow \infty ?$ This value is called the -state solution.

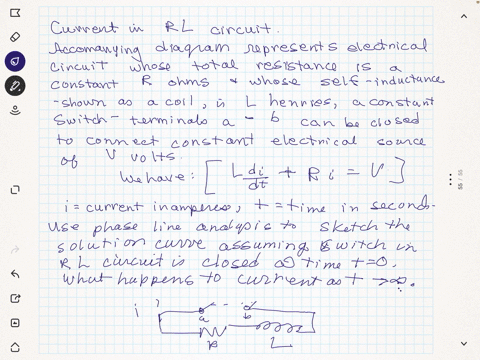

Current in an RL-circuit The accompanying diagram represents an electrical circuit whose total resistance is a constant R ohms and whose self-inductance, shown as a coil, is L henries, also a constant. There is a switch whose terminals at a and b can be closed to connect a constant electrical source of V volts. From Section 9.2, we have
$$L \frac{d i}{d t}+R i=V$$
where i is the current in amperes and t is the time in seconds.

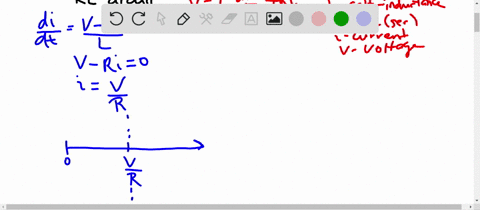

Use a phase line analysis to sketch the solution curve assuming that the switch in the $R L$ -circuit is closed at time $t=0$ . What happens to the current as $t \rightarrow \infty ?$ This value is called the
-state solution.

Key Concepts

Steady State Solution

The steady state solution refers to the long-term behavior of the circuit when all transient effects have decayed. For an RL circuit under constant voltage, as time approaches infinity, the effect of the inductance becomes negligible, and the current settles at a value determined solely by the resistance, namely i = V/R.

Phase Line Analysis

Phase line analysis is a qualitative technique used to analyze the stability and behavior of solutions of differential equations without solving them explicitly. By examining the sign of the derivative (di/dt) in the differential equation, one can determine the stability of fixed points and understand how the current in the circuit evolves over time.

Differential Equation of Circuit Dynamics

The behavior of an RL circuit when subjected to a constant voltage is modeled by a first-order linear differential equation. This equation, L(di/dt) + Ri = V, captures how current changes over time due to the opposing effects of resistance and inductance, and it forms the basis for analyzing the transient response of the circuit.

RL Circuit

An RL circuit is an electrical circuit containing both resistive (R) and inductive (L) components. The inductance opposes changes in current while the resistance provides a constant opposition to current flow. This combination leads to a transient behavior until the circuit reaches a new equilibrium when a constant voltage is applied.
