Derive an expression for the interplanar spacing in the case of a cubic structure?

Name: Problem 26, Chapter 5: A Text Book of Engineering Physics - I
Uploaded: 2022-01-22T18:50:39-08:00
Duration: 16 min 33 s
Channel: Hafiz Shahzaib
Description: Derive an expression for the interplanar spacing in the case of a cubic structure?

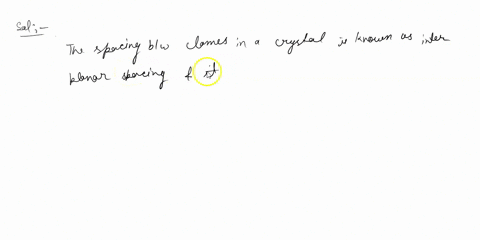

step 1 So now we have start the explanation of this question. So we know that consider a plan consider

Derive an expression for the interplanar spacing in the case...

Key Concepts

Lattice Parameter

The lattice parameter in a crystalline structure is the physical dimension of the unit cell, often denoted by 'a' in cubic systems. This parameter is crucial in the calculation of interplanar spacing as it provides the scale necessary to relate the abstract Miller indices to actual distances between planes.

Interplanar Spacing

Interplanar spacing refers to the distance between parallel planes of atoms in a crystal. In a cubic lattice, the spacing for a plane characterized by Miller indices (h, k, l) can be mathematically derived as a function of the lattice parameter and these indices, resulting in the well-known formula d = a/?(h² + k² + l²).

Bragg's Law

Bragg's Law connects the interplanar spacing to diffraction patterns observed in X-ray diffraction experiments. Although the law primarily describes the condition for constructive interference, it indirectly underscores the significance of accurately determining the spacing between atomic planes in a crystalline material.

Cubic Crystal Structure

A cubic crystal structure is one of the simplest and highly symmetrical types of crystal lattices. In this structure, all the edges of the unit cell are equal and intersect at right angles, which simplifies the mathematical derivation of various crystallographic properties, such as the interplanar spacing.

Miller Indices

Miller indices are a set of three integers that denote the orientation of a crystallographic plane within a lattice. They are fundamental in crystallography because they provide a systematic way to identify and relate different planes in the crystal, which is essential when calculating interplanar spacing.
