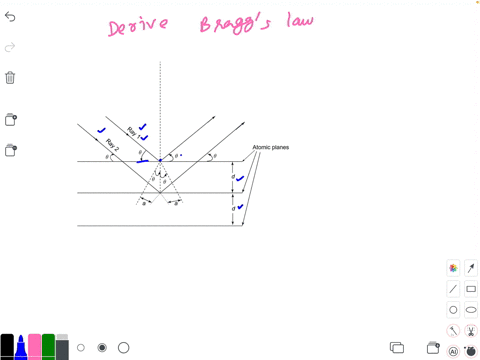

Derive the Bragg's law of X-ray diffraction and obtain the relation that connects the interplana

step 1 This question we have to derive the Bragg law, okay, the Bragg's law for the x -ray diffraction.

Derive the Bragg's law of X-ray diffraction and obtain the...

Key Concepts

Miller Indices

Miller indices are a set of three integers (h, k, l) used to uniquely identify the orientation of crystal planes in a lattice. They play a crucial role in crystallography by providing a simple notation for the geometric configuration of lattice planes, which in turn is essential for deriving relationships between diffraction patterns and the underlying crystal structure.

Interplanar Spacing

Interplanar spacing refers to the distance between parallel planes of atoms in a crystal lattice. In crystallography, it is a critical parameter for understanding diffraction patterns and is directly related to the angles at which constructive interference occurs as described by Bragg's Law.

Lattice Parameters in Orthogonal Systems

Lattice parameters are the fundamental dimensions (such as a, b, and c) that define the unit cell of a crystal. In orthogonal systems, where the cell edges intersect at right angles, the interplanar spacing for a set of lattice planes with Miller indices (h, k, l) is mathematically related to these parameters by the formula 1/d² = (h²/a²) + (k²/b²) + (l²/c²). This relationship facilitates the determination of structural details from x-ray diffraction data.

X-ray Diffraction

X-ray diffraction is an analytical technique used to determine the crystal structure of materials by examining the pattern of X-rays scattered by the atoms within a crystal. It relies on the interaction of X-ray beams with the periodic array of atoms, resulting in interference patterns that can be analyzed to reveal information about the structure, including lattice parameters and interatomic distances.

Bragg's Law

Bragg's Law is a fundamental principle in X-ray diffraction that describes the condition for constructive interference from X-rays scattered by crystal planes. According to this law, when X-rays strike parallel crystal planes, the condition for constructive interference is given by 2d sin(?) = n?, where d is the spacing between the planes, ? is the angle of incidence, n is an integer representing the order of reflection, and ? is the wavelength of the incident X-rays.
