Describe galvanic cells that use the following reactions. In...

Describe galvanic cells that use the following reactions. In each case, write the anode and cathode half-reactions and sketch the experimental setup. Label the anode and cathode, identify the sign of each electrode, and indicate the direction of electron and ion flow. (a) $3 \mathrm{Cu}^{2+}(a q)+2 \mathrm{Cr}(s) \longrightarrow 3 \mathrm{Cu}(s)+2 \mathrm{Cr}^{3+}(a q)$ (b) $\mathrm{Pb}(s)+2 \mathrm{H}^{+}(a q) \longrightarrow \mathrm{Pb}^{2+}(a q)+\mathrm{H}_{2}(g)$ (c) $\mathrm{Cl}_{2}(g)+\mathrm{Sn}^{2+}(a q) \longrightarrow \mathrm{Sn}^{4+}(a q)+2 \mathrm{Cl}^{-}(a q)$

Describe galvanic cells that use the following reactions. In each case, write the anode and cathode half-reactions and sketch the experimental setup. Label the anode and cathode, identify the sign of each electrode, and indicate the direction of electron and ion flow.

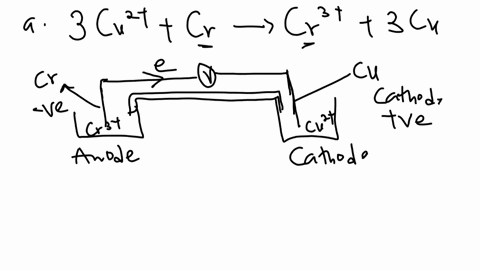

(a) $3 \mathrm{Cu}^{2+}(a q)+2 \mathrm{Cr}(s) \longrightarrow 3 \mathrm{Cu}(s)+2 \mathrm{Cr}^{3+}(a q)$
(b) $\mathrm{Pb}(s)+2 \mathrm{H}^{+}(a q) \longrightarrow \mathrm{Pb}^{2+}(a q)+\mathrm{H}_{2}(g)$
(c) $\mathrm{Cl}_{2}(g)+\mathrm{Sn}^{2+}(a q) \longrightarrow \mathrm{Sn}^{4+}(a q)+2 \mathrm{Cl}^{-}(a q)$

Key Concepts

Salt Bridge and Ion Flow

The salt bridge is an essential component of a galvanic cell that connects the two half-cells. It permits the flow of ions between the solutions to maintain electrical neutrality as electrons move through the external circuit. This ion migration is necessary to prevent charge buildup that would otherwise stop the redox reactions from proceeding.

Electron Flow

Electron flow in a galvanic cell is driven by the potential difference created by the redox reactions; electrons travel from the anode to the cathode through the external circuit. This movement of charge is what provides electrical energy and can be harnessed to perform work in an electrical device.

Redox Half-Reactions

Redox half-reactions describe the separate oxidation and reduction processes occurring at each electrode. In a galvanic cell, these reactions are split to identify the species that lose electrons (oxidation) and those that gain electrons (reduction), which are essential for determining the overall cell potential and for understanding the chemical changes at each electrode.

Galvanic Cell

A galvanic cell is an electrochemical cell that converts spontaneous redox reactions into electrical energy. It typically consists of two half-cells where oxidation and reduction reactions occur separately, connected by an external circuit and a salt bridge or porous membrane that allows ion flow to maintain charge balance.

Anode (Oxidation) and Cathode (Reduction)

In a galvanic cell, the anode is the electrode where oxidation occurs, meaning electrons are released by the reactants, while the cathode is the electrode where reduction takes place, accepting electrons. The anode is typically negative and the cathode positive in a galvanic cell, which is crucial for establishing the direction of electron flow through the external circuit.

Transcript

00:01 And again one excel when copper ion reacts with the chromium ion, the chromium, so the copper is reduced while the chromium is oxidized to cr3 plus iron.

00:50 In this reaction, it anode oxidation of the chromium take place.

01:00 Your chromium oxidizes to cr3 plus and release electrons so their oxidation take place on the other hand at cathode the copper is reduced canning the electron released by the chromium as the oxidation of the chromium take place at the cathode so the chromium from the at the anode so the chromium from the electrode moves toward the solution in the form of cr3 plus ions their oxidation take place at anode so it leaves the electron at the anode therefore anode has negative charge this is a galvanic cell and a spontaneous process on the other hand at cathode reduction of the copper take place so copper move from the solution toward the cathode where it reduces it gains the electron here the cathode has positive charge the electron moves from the external through the external circuit from the anode toward the cathode in a lead react with hydrogen ions, lead oxidizes to pb 2 plus while hydrogen gas is released and this reaction at anode lead oxidizes to pb2 plus ion releasing the electrons while at cathode the hydrogen ions gain the electrons released by the lead so it reduces to hydrogen gas here the oxidation of the lead of the lead take place at anode so let move from the electrode toward the solution in the form of pb2 plus ion this reaction take place at anode as it leave the electron at the anode therefore anode has negative charge on the other hand it cathode the hydrogen ion from the solution move toward the electrode where it gains electron and change into hydrogen gas the electron move from the anode toward the cathode through external circuit in a cell when 10 react with sn2 plus ion react with chlorine gas, sn2 oxidizes to sn4 plus and chlorine is reduced to chloride.

05:40 Here, 8 anode, the oxidation of the sn2 plus take place with change to sn4 plus...
