Describe the magnetic field due to the current in two wires connected to the two terminals of a

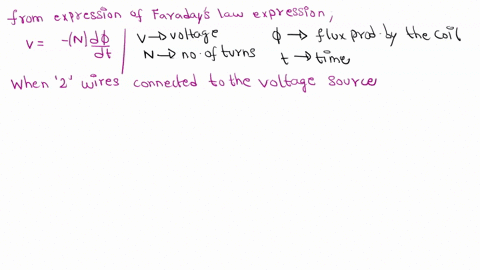

step 1 Alrighty, so we have two wires. This is difficult to draw, but I'm just going to draw one in bla

Describe the magnetic field due to the current in two wires...

Key Concepts

Magnetic Field Cancellation in Opposite Currents

When two conductors carry equal currents in opposite directions, their individual magnetic fields can partially or completely cancel out in certain regions. In configurations where wires are twisted tightly together, the alternating currents tend to create opposing magnetic fields in the surrounding space, leading to a net field that is significantly reduced or confined to very specific regions. This concept is fundamental in applications requiring minimal electromagnetic interference.

Superposition Principle

The net magnetic field at a given point is the vector sum of the individual fields created by each current element in the system. In systems with multiple wires or complex geometries, such as two twisted wires, the contributions from each wire must be added together. Depending on the directions of the currents and the geometry of the arrangement, these fields can either reinforce or cancel each other.

Magnetic Field from a Current-Carrying Conductor

A current-carrying conductor produces a magnetic field in the space surrounding it. The direction of the field follows the right-hand rule, forming concentric circles around the wire. The field’s magnitude decreases with distance from the wire, and its configuration can be calculated using either the Biot–Savart law or Ampère’s law, depending on the symmetry of the situation.

Biot–Savart Law

The Biot–Savart law gives the magnetic field produced by a small segment of current-carrying conductor. It relates the magnetic field to the current element and its position relative to the observation point. This law is especially useful when dealing with wires of arbitrary shape, as it allows for the integration of contributions from each segment of the conductor.

Ampère’s Law

Ampère’s law provides a way to relate the integrated magnetic field around a closed loop to the electric current passing through the loop. It is particularly useful for systems that exhibit a high degree of symmetry. In configurations such as twisted wires or coils, Ampère’s law helps in determining the overall magnetic field generated when the geometry simplifies the calculation.
