Determine the distance x̅ to the centroid C of the beam's cross-sectional area and then compute

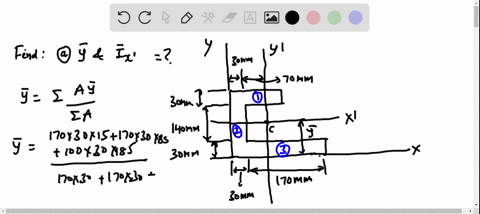

step 1 Hi everyone here we have to find the distance x bar of the centroid C of the beam cross -section

Determine the distance x̅ to the centroid C of the beam's...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Centroid

The centroid of a cross-sectional area is the point where the entire area can be considered to be concentrated. Its location is determined by taking the first moment of the area about the relevant axes and dividing by the total area. This process establishes a balance point and is fundamental in structural analysis to determine where loads will be effectively applied.

Area Moment of Inertia

The area moment of inertia, also known simply as the moment of inertia for a cross-section, measures how the area is distributed about an axis and reflects the resistance of a beam to bending or deflection. It is calculated by integrating the square of the distance from each differential area element to the axis over the entire cross-sectional area.

Parallel Axis Theorem

The parallel axis theorem is used to determine the moment of inertia about any axis parallel to the centroidal axis. It states that the moment of inertia about a parallel axis is equal to the moment of inertia about the centroidal axis plus the product of the area and the square of the distance between the two axes. This theorem is essential when the axis of interest does not pass through the centroid.
