Determine the following for the voltage-divider configuration of Fig. 128 using the approximate

step 1 I'm going to work a problem that deals with Kirchhoff's voltage law. Kirchhoff's voltage law say

Determine the following for the voltage-divider...

Key Concepts

Resistive Network Voltage Division

Voltage division is a basic principle in resistive networks where the voltage across each resistor in series is proportional to its resistance. In the context of biasing a transistor, the voltage divider sets the base voltage (V_B) by proportionally splitting the supply voltage according to the resistor values. This concept is key to determining various node voltages in the circuit, such as the emitter voltage (V_E) after accounting for the base-emitter junction drop.

Approximate Analysis Techniques

An approximate analysis in bias networks is often used when certain conditions make the impact of some circuit elements negligible. Specifically, if the current through the biasing resistors is significantly higher than the transistor’s base current, the divider’s loading effect can be ignored, simplifying the calculations. This approximation is useful for quickly estimating circuit parameters without resorting to more complex iterative methods.

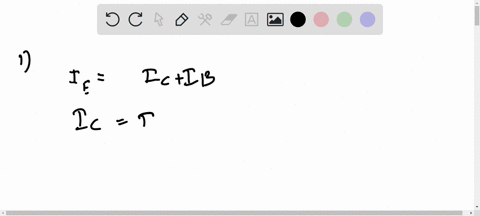

BJT Current Relationships

In bipolar junction transistors (BJTs), the collector current (I_C) is typically related to the base current (I_B) through the current gain (?), where I_C ? ? I_B. Additionally, the emitter current (I_E) is the sum of I_C and I_B. These relationships are fundamental in analyzing transistor circuits and designing biasing networks that provide the correct operating conditions.

Voltage Divider Bias

Voltage divider bias is a common technique used in transistor circuits to set a stable operating point by using a pair of resistors connected between the supply voltage and ground. This network establishes a fixed bias voltage at the transistor's base, which helps to maintain the desired operating region even with variations in transistor parameters or temperature.

Transistor Operating Point (Quiescent Point) Analysis

Determining the transistor's operating point (or Q-point) involves calculating the DC currents and voltages in the circuit, such as the collector current (I_C), base current (I_B), emitter voltage (V_E), and collector-emitter voltage (V_CE). This analysis ensures that the transistor functions correctly in its active region, providing proper biasing for amplification.
