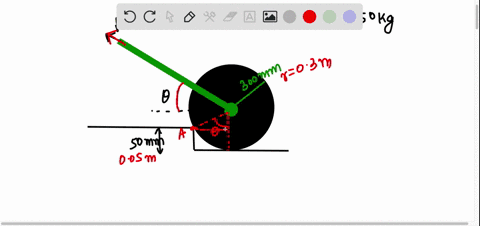

Determine the force P needed to pull the 50-kg roller over the smooth step. Take θ=30^∘

Name: Problem 29, Chapter 5: Engineering Mechanics: Statics and Dynamics
Uploaded: 2020-08-01T21:59:07-08:00
Duration: 3 min 29 s
Channel: Eric Mockensturm
Description: Determine the force P needed to pull the 50-kg roller over the smooth step. Take θ=30^∘

step 1 In this problem, we have a roller here and we're trying to pull it over this little step here fr

Determine the force P needed to pull the 50-kg roller over...

Key Concepts

Lever Arm Concept

The lever arm is the perpendicular distance from the line of action of a force to the pivot point. Recognizing and computing the correct lever arms for different forces (such as the weight of the body and the applied force) is essential for setting up the moment equilibrium condition.

Center of Mass

The center of mass is the point at which the entire mass of an object can be considered to be concentrated. In problems involving rolling or tipping, the weight of the object acts through its center of mass, and its location relative to the pivot affects the stability and the required force to overcome an obstacle.

Static Equilibrium

This concept involves analyzing a system where all forces and moments balance so that the system remains at rest or in uniform motion. In problems like rolling a body over an obstacle, establishing equilibrium (especially rotational equilibrium about the pivot point) is crucial for determining the force required to initiate motion.

Torque (Moment) Calculation

Torque is the rotational equivalent of force and is calculated as the product of a force and its lever arm, the perpendicular distance from the pivot point. In pull-over problems, the applied force must generate a torque that counteracts the moment created by the weight of the body about the point of contact with the obstacle.

Geometric Analysis in Rollover Mechanics

This involves using the geometry of the object and the obstacle, including angles and distances (like the angle of force application and dimensions of the object), to determine the effective lever arms and points of rotation. It is fundamental in calculating the balance of moments when the object is about to roll over the edge.
