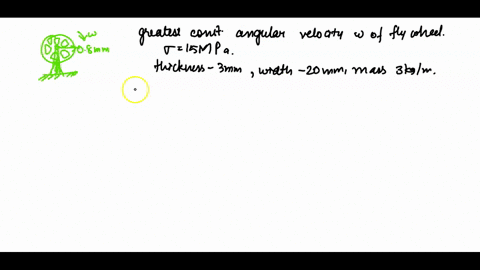

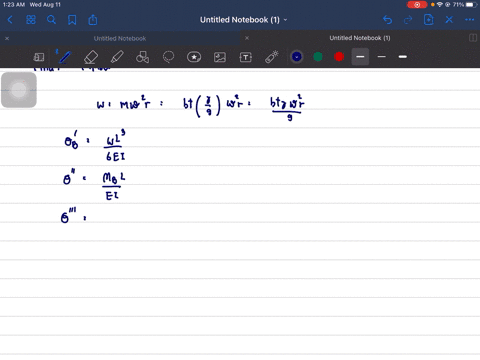

Determine the greatest constant angular velocity $\omega$ of the flywheel so that the average normal stress in its rim does not exceed $\sigma=15$ MPa. Assume the rim is a thin ring having a thickness of $3 \mathrm{mm}$, width of $20 \mathrm{mm}$, and a mass of $30 \mathrm{kg} / \mathrm{m} .$ Rotation occurs in the horizontal plane. Neglect the effect of the spokes in the analysis. Hint: Consider a free-body diagram of a semicircular segment of the ring. The center of mass for this segment is located at $\hat{r}=2 r / \pi$ from the center.

Key Concepts

Thin-Walled Structure Analysis

Thin-walled structure analysis simplifies the problem by assuming that the wall thickness is small compared to other dimensions. This allows for the use of approximations and somewhat uniform stress distribution across the cross-section, which significantly simplifies the derivation of stress formulas in rotational applications.

Free-Body Diagram and Equilibrium Analysis

A free-body diagram is a graphical illustration used to visualize the forces and moments acting on a segment of a structure. By isolating a representative segment—such as a semicircular piece in the case of a ring—one can apply equilibrium equations to derive relationships between the applied forces and the resulting stresses, providing a systematic approach to solving problems in structural mechanics.

Angular Velocity

Angular velocity quantifies the rate of rotation of an object and is a central concept in rotational dynamics. It is used to determine the kinematics of rotating bodies and, when combined with the geometry of the system, helps in calculating the forces acting on the material elements of a rotating structure.

Centrifugal Force

Centrifugal force is an apparent force experienced by a mass moving in a circular path, acting outward from the center of rotation. This force arises as a result of the mass's inertia and is proportional to the square of the angular velocity. In the context of rotating structures, it is responsible for inducing stress within the material.

Stress Analysis in Rotating Structures

Stress analysis in rotating structures involves determining the internal forces that develop due to the centrifugal forces acting on the system. This includes evaluating the normal (tensile) stress in the material to ensure that it does not exceed the material's allowable strength, which is crucial for the integrity and safety of the rotating component.
