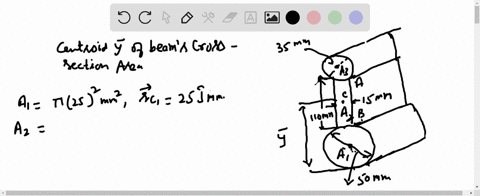

Determine the location y̅ of the centroid C for a beam having the cross-sectional area shown. Th

step 1 Hi everyone in this problem we have to calculate centroid y of cross section of the beam which i

Determine the location y̅ of the centroid C for a beam...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Centroid Calculation

The centroid of a shape is the point where the shape’s area can be considered to be concentrated. It is calculated by taking the first moments of the area about an axis and dividing by the total area. For an irregular or composite area, this often involves integration or the summation of individual moments from simpler shapes.

Symmetry in Cross?Sectional Areas

When a cross-sectional area is symmetric about an axis, certain coordinates of the centroid can be determined without computation. For instance, if a beam is symmetric with respect to the y-axis, the x-coordinate of the centroid will be zero. This principle simplifies the analysis because the symmetry directly provides one of the centroid coordinates, allowing focus on the remaining coordinate, such as y-bar in this case.

Composite Areas Method

For complex shapes, the area can frequently be divided into simpler, well-known geometric regions. The total area and the moments of these regions can be calculated individually and then combined. This composite areas method leverages standard centroid formulas for basic shapes, making it easier to compute the overall centroid location by summing the contributions of each section and dividing by their total area.
