Determine the maximum distance d to the edge of the plate at...

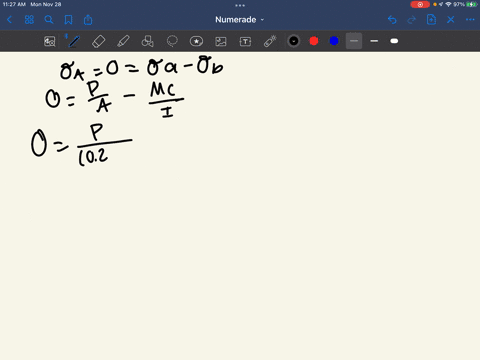

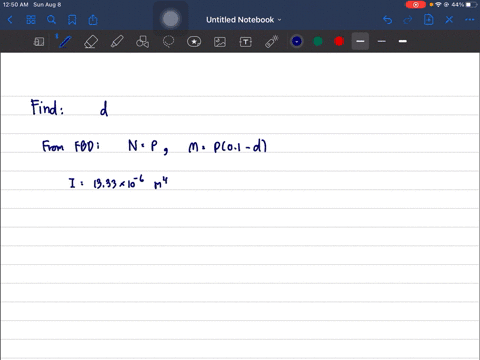

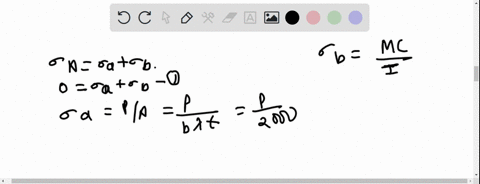

Determine the maximum distance $d$ to the edge of the plate at which the force $\mathbf{P}$ can be applicd so that it produces no compressive stresses on the plate at section $a-a .$ The plate has a thickness of $20 \mathrm{mm}$ and $\mathbf{P}$ acts along the centerline of this thickness.

Key Concepts

Lever Arm

The lever arm is the perpendicular distance from the line of action of the applied force to the neutral axis. It directly influences the magnitude of the bending moment produced by the force. By controlling the lever arm, one can manage the bending moment such that it prevents the occurrence of compressive stresses on a specific section, which is key in problems where avoiding compression is the objective.

Bending Moment and Stress Distribution

When a force is applied away from the neutral axis, it generates a bending moment that causes one side of the cross-section to compress and the other side to experience tension. The magnitude of the bending moment depends on both the force and its distance (lever arm) from the neutral axis. Analyzing this moment is essential to ensure that the induced stress distribution does not result in undesired compressive stresses in the critical areas of interest.

Neutral Axis

The neutral axis is the line or plane within a cross-section of a beam or plate where bending stresses are zero during flexure. On one side of this axis, the material experiences tensile stresses, while on the opposite side, it undergoes compressive stresses. Identifying the location of the neutral axis helps engineers predict and control stress distributions, especially when aiming to avoid compressive stresses at a specific section.

Eccentric Loading

Eccentric loading refers to the application of a force at a location that is offset from a structural element’s central or reference axis. This offset creates not only a direct force but also an additional bending moment, which significantly affects the stress distribution across the section. Understanding eccentric loading is crucial when trying to control or limit compressive or tensile stresses within a material.
