Determine the maximum shearing stress in a solid shaft of 1.4-in. diameter as it transmits 66 hp

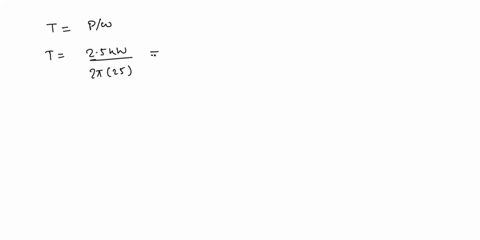

step 1 So here in this question firstly the maximum shear stress is given by the M and that is equals t

Determine the maximum shearing stress in a solid shaft of...

Key Concepts

Torque Conversion

This concept involves converting power into torque using the relationship between mechanical power, torque, and angular speed. In rotational systems, power (often given in horsepower) can be related to torque (typically in foot-pounds) through formulas that incorporate conversion factors and the rotational speed of the shaft. This conversion is essential for determining the load applied to the shaft and the resulting stresses.

Polar Moment of Inertia

This is a geometric property of a cross-section that reflects its ability to resist torsional deformation. For circular shafts, the polar moment of inertia (J) is calculated using formulas such as J = (?d^4)/32, where d is the diameter. This value is key to relating the applied torque to the shear stress in the shaft.

Shear Stress in Torsion

Shear stress induced by torsional loading is calculated by the formula ?_max = (T * c) / J, where T is the applied torque, c is the outer radius of the shaft, and J is the polar moment of inertia. This relationship is fundamental in mechanical design as it helps engineers ensure that the shaft will not fail under the applied load by comparing the computed stress with the material's allowable limits.

Relation between Rotational Speed and Torque

Under a constant power transmission scenario, the torque transmitted by a shaft is inversely proportional to its rotational speed. This means that as the rotational speed increases, the torque required to deliver the same power decreases. Understanding this relationship is important in the design and analysis of rotating machinery and helps in calculating the stresses for various operating conditions.
