Determine the moment of the force 𝐅 about point P Express the result as a Cartesian vector.

Name: Problem 31, Chapter 4: Engineering Mechanics: Statics and Dynamics
Uploaded: 2021-03-02T11:51:27-08:00
Duration: 3 min
Channel: Vipender Yadav
Description: Determine the moment of the force 𝐅 about point P Express the result as a Cartesian vector.

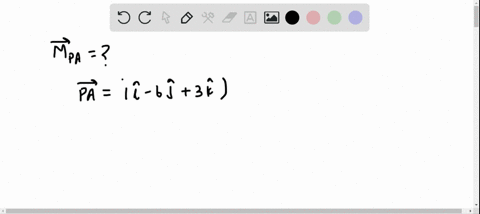

step 1 So here on this problem we have to determine the moment of the force if that you can see here ab

Determine the moment of the force 𝐅 about point P Express...

Key Concepts

Moment (Torque)

The moment of a force, often referred to as torque, quantifies the rotational effect a force exerts about a specific point. It is mathematically defined as the cross product of the position vector (from the point of rotation to the point where the force acts) and the force vector, thereby capturing both the magnitude of the force and its lever arm as well as the angle between them.

Cross Product

The cross product is an operation on two vectors in three-dimensional space that results in a new vector perpendicular to the plane containing the original vectors. Its magnitude is given by the product of the magnitudes of the two vectors and the sine of the angle between them, making it a fundamental tool in calculating rotational quantities like moments.

Position Vector

A position vector represents the location of a point in space relative to a chosen origin or reference point. In the context of moments, it is used to determine the lever arm, which is crucial for calculating the rotational influence of a force.

Cartesian Coordinates

Cartesian coordinates provide a framework for expressing vectors in three-dimensional space using a set of orthogonal axes (usually labeled x, y, and z). Expressing vectors as combinations of these basis vectors allows for clear and standardized calculations and representations of physical problems such as the moment of a force.
