Question
Determine the relative phase relationship of the two waves $$\begin{array}{l}v_{1}(t)=10 \cos \left(377 t-30^{\circ}\right) \mathrm{V} \\v_{2}(t)=10 \cos \left(377 t+90^{\circ}\right) \mathrm{V}\end{array}$$
Step 1
The phase angle of the first wave, $v_{1}(t)$, is $-30^{\circ}$ and the phase angle of the second wave, $v_{2}(t)$, is $90^{\circ}$. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 74 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Determine the relative phase relationship of the two waves $$\begin{array}{l} v_{1}(t)=10 \cos \left(377 t-30^{\circ}\right) \mathrm{V} \\ v_{2}(t)=10 \cos \left(377 t+90^{\circ}\right) \mathrm{V} \end{array}$$
Given the following voltage and current: $$\begin{array}{l}i(t)=5 \sin \left(377 t-20^{\circ}\right) \mathrm{V} \\v(t)=10 \cos \left(377 t+30^{\circ}\right) \mathrm{V}\end{array}$$ Determine the phase relationship between $i(t)$ and $v(t)$.

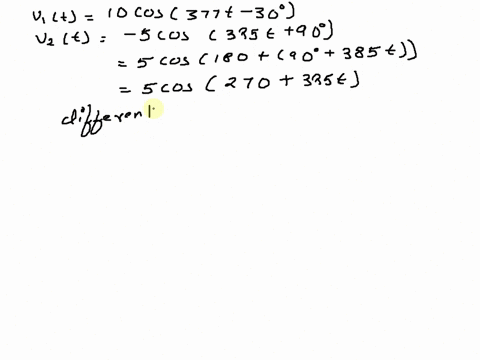

Q4// i) Determine the relative phase relationship of the two waves 01(t) = 10 cos (377t - 309) V 02(t) = -5 cos (385t + 909) V. ii) Given i(t) = 5 cos (400t - 1209) A, determine the period of the current and the frequency in Hertz.
