Determine the required thickness of the 50 -mm tubular shaft of Concept Application 3.7, if it i

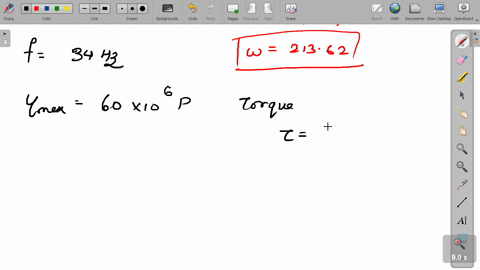

step 1 So let's solve this question. So in this question, we have t equals to p by omega that equals to

Determine the required thickness of the 50 -mm tubular shaft...

Key Concepts

Power Transmission in Rotating Shafts

In mechanical systems, power is transmitted through rotating shafts by converting the rotational motion into work via torque. The amount of power that can be transmitted depends on the torque and the angular velocity of the shaft. Designing a shaft to handle a specific power output requires ensuring that the shaft’s material and dimensions can withstand the induced stresses and dynamic forces.

Torsion and Shear Stress

When a shaft transmits torque, it experiences torsion, leading to shear stress within its material. The magnitude of shear stress is a function of the applied torque and the shaft’s geometry. To prevent failure, the design must ensure that the induced shear stress does not exceed the material’s allowable shear strength, thereby providing a safe design against twisting or fatigue.

Shaft Geometry and Polar Moment of Inertia

The ability of a shaft to resist torsional deformation is characterized by its polar moment of inertia, which depends on its cross?sectional shape. For a tubular (hollow) shaft, the polar moment of inertia is determined by the outer and inner diameters. Adjusting the wall thickness directly affects this inertia, and hence the shaft’s capacity to transmit the required torque without excessive deflection or stress.

Rotational Frequency and Angular Velocity

The rotational frequency, given in hertz, is directly related to the shaft’s angular velocity, which influences the dynamic loading and the stress distribution across the shaft. Higher rotational speeds typically result in increased forces, requiring careful design considerations to maintain structural integrity under the specified operational conditions.
