Determine the resultant internal normal and shear force in...

Name: Problem 2, Chapter 1: Mechanics of Materials
Uploaded: 2021-12-18T11:07:16-08:00
Duration: 4 min 8 s
Channel: Khoobchandra Agrawal

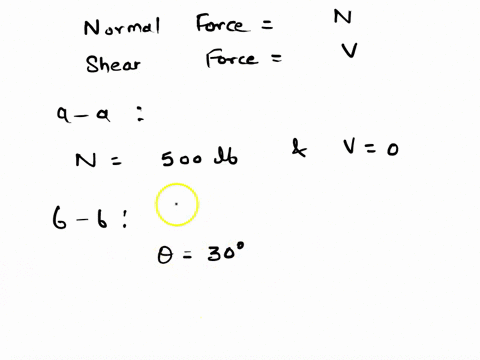

Description: Determine the resultant internal normal and shear force in the member at (a) section a–a and (b) section b–b, each of which passes through the centroid A. The 500-lb load is applied along the centroidal axis of the member.

Determine the resultant internal normal and shear force in the member at (a) section a–a and (b) section b–b, each of which passes through the centroid A. The 500-lb load is applied along the centroidal axis of the member.

Key Concepts

Free-Body Diagram

A free-body diagram (FBD) is a simplified representation of a structure or a part of a structure that shows all applied loads, support reactions, and internal forces. In the context of determining internal forces in a member, an FBD helps isolate a section of the structure to visualize the forces acting on it, which is crucial for setting up equilibrium equations.

Static Equilibrium

Static equilibrium refers to the condition where the sum of forces and the sum of moments acting on a system are zero. This principle is used to analyze the free-body diagram of a sectioned member, allowing the calculation of internal forces such as normal and shear forces by ensuring that all forces balance in the horizontal and vertical directions.

Section Cut Method

The section cut method involves making an imaginary cut through a structural member to expose the internal forces (normal, shear, and moment). By taking a segment of the member and applying equilibrium equations, one can determine the resultant internal forces acting at the cut section, which is essential for structural analysis.

Internal Normal Force

The internal normal force, also known as the axial force, is the component of the internal force acting along the longitudinal axis of the member. It develops in response to loads that tend to stretch or compress the member. Determining this force is critical for assessing the member's capacity to withstand axial loads without buckling or failure.

Internal Shear Force

The internal shear force is the component of the internal force acting perpendicular to the longitudinal axis of the member. It is generated by loads that cause sliding between adjacent sections of the member. Evaluating the shear force is important for ensuring that the member can resist shear failures and maintain structural integrity under lateral loads.
