Determine the stiffness kT of the single spring such that the force 𝐅 will stretch it by the sam

Name: Problem 23, Chapter 3: Engineering Mechanics: Statics SI Edition
Uploaded: 2020-08-12T06:49:20-08:00
Duration: 3 min 11 s
Channel: Khoobchandra Agrawal
Description: Determine the stiffness kT of the single spring such that the force 𝐅 will stretch it by the same amount s as the force 𝐅 stretches the two springs. Express kT in terms of stiffness k1 and k2 of the two springs.

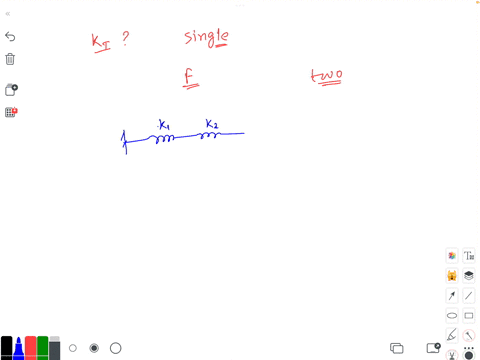

step 1 Hello everyone in this problem it is given we have to find the value of k t in terms of k1 and k

Question

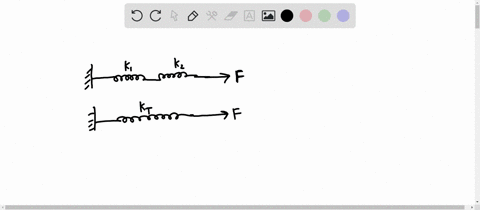

Determine the stiffness $k_{T}$ of the single spring such that the force $\mathbf{F}$ will stretch it by the same amount $s$ as the force $\mathbf{F}$ stretches the two springs. Express $k_{T}$ in terms of stiffness $k_{1}$ and $k_{2}$ of the two springs.

   Determine the stiffness $k_{T}$ of the single spring such that the force $\mathbf{F}$ will stretch it by the same amount $s$ as the force $\mathbf{F}$ stretches the two springs. Express $k_{T}$ in terms of stiffness $k_{1}$ and $k_{2}$ of the two springs.

Engineering Mechanics: Statics SI Edition

Russell C. Hibbeler 14th Edition

Chapter 3, Problem 23

Instant Answer

Solved by Expert Khoobchandra Agrawal

08/12/2020

Step 1

When a force F is applied to the single spring, it stretches by an amount s. The relationship between force, stiffness, and stretch is given by Hooke's Law: F = k_T * s. Show more…

Show all steps

Thanks for your feedback!

Determine the stiffness $k_{T}$ of the single spring such that the force $\mathbf{F}$ will stretch it by the same amount $s$ as the force $\mathbf{F}$ stretches the two springs. Express $k_{T}$ in terms of stiffness $k_{1}$ and $k_{2}$ of the two springs.

Play audio

Feedback

Khoobchandra Agrawal and 60 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Spring Stiffness

Spring stiffness, or the spring constant, is a measure of a spring's resistance to deformation. It quantifies the relationship between the force applied to the spring and the resulting displacement, as described by Hooke's law (F = k * s).

Series Combination of Springs

When springs are connected in series, the total displacement resulting from an applied force is the sum of the individual displacements of each spring. This configuration results in a lower effective stiffness compared to any individual spring.

Effective Spring Constant

The effective spring constant is the equivalent stiffness of a system that produces the same displacement under the same force as the individual components. For springs in series, the effective stiffness is given by the reciprocal of the sum of the reciprocals of the individual spring constants, leading to the formula 1/k_eff = 1/k1 + 1/k2.
