Determine the velocity of cart A if cylinder B has a downward velocity of 2 ft / sec at the inst

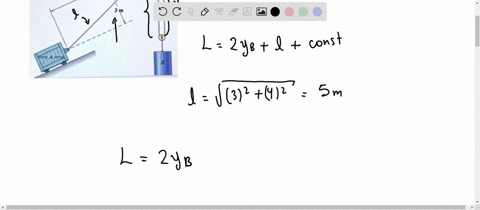

step 1 Here for the solution, 4x distance of block B, the string moves by 2x. Now consider block A for

Determine the velocity of cart A if cylinder B has a...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Kinematic Constraints in Pulley Systems

In any pulley system, the lengths of the ropes or cables are typically constant, which creates constraints between the motion of different parts of the system. Understanding these constraints allows one to derive relationships between the velocities of various points in the system. This principle is crucial because it links the movements of connected objects, enabling the calculation of one velocity when another is known.

Relative Motion Analysis

Relative motion analysis involves studying the movement of one component with respect to another within a system. In the context of pulley mechanisms, this requires analyzing how the motion of one part (such as a falling cylinder) affects the motion of another (like a moving cart) by considering their interrelationships defined by the system’s geometry and constraints.

Velocity Relationships in Constrained Systems

When dealing with systems where the moving components are connected by inextensible ropes or chains, the movements are not independent. Instead, the velocities are interdependent through mathematical relationships derived from the system's configuration. This concept is widely applied in mechanical systems to deduce unknown velocities based on known rates of movement of other components.
