Diagonals of a rhombus Show that the diagonals of a rhombus (parallelogram with sides of equal l

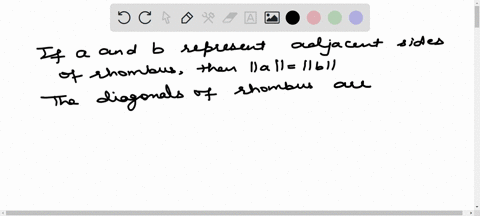

step 1 We want to show the diagonals of a rhombus are perpendicular. So I went ahead and drew a sketch

Diagonals of a rhombus Show that the diagonals of a rhombus...

Key Concepts

Rhombus

A rhombus is a special type of quadrilateral that not only has all sides of equal length but also qualifies as a parallelogram with opposite sides parallel. This symmetry, along with specific properties of its diagonals, makes it a central figure in studies of Euclidean geometry.

Diagonals

Diagonals are line segments connecting opposite vertices in a polygon. In quadrilaterals, and particularly in a rhombus, the behavior of the diagonals—such as bisecting each other and exhibiting unique angular relationships—provides key insights into the shape’s overall properties.

Perpendicularity

Perpendicularity refers to the intersection of two lines or segments at a right angle (90 degrees). Demonstrating this property in the context of a rhombus involves showing that the diagonals intersect to form a 90-degree angle, a crucial aspect in understanding the structure and symmetry of the figure.

Congruence of Triangles

The concept of congruence, which involves proving that two triangles are identical in shape and size, is essential in many geometric proofs. In a rhombus, the intersection of the diagonals creates triangles that can be shown to be congruent using criteria like Side-Side-Side (SSS), thereby supporting the conclusion that the diagonals are perpendicular.

Transcript

00:01 We want to show the diagonals of a rhombus are perpendicular.

00:05 So i went ahead and drew a sketch of a rhombus really quickly.

00:10 And what we're wanting to show is that the vector going from a to c, if we dot product this with the vector b, d, this should give us zero.

00:28 All right, so if we show this, then we have that this will be perpendicular.

00:36 All right.

00:36 So now something else that might be useful for this problem is, so first, rombuses have all the same side link, so i have x's there.

00:48 And we know that ab, so the line ab, is going to be parallel to the line dc.

01:00 And likewise, the line ad is going to be parallel to the line b, c.

01:11 All right, so we're going to need to use these facts in a little bit.

01:18 Now, what i'm going to do is let's rewrite ac and bd.

01:23 All right, so ac goes straight across the diagonal, but we can rewrite ac as ab, plus bc and we'll have our dot product and we can rewrite bd as bc plus c d.

01:54 All right so we can go ahead and use one of the properties of dot product to distribute this across.

02:01 So we can do a, b, plus bc dotted with bc and then we're going to add this to when we have so it's going to be a b still plus bc dot c d and one more time let's distribute the dot product again and doing that will give ab dot bc plus bc dot bc plus bc dot bc dot bc plus a b dot c d plus b c d plus b c d okay so this would be it fully expanded out if we were to take this dot product so it's kind of like foiling in a way but we need to make sure we preserve the order so now we can go ahead and see if we can rewrite this in any way to maybe get some stuff to cancel out.

04:06 Okay.

04:07 So over here we have these parallels.

04:12 So maybe we can use those.

04:15 So it says ab is parallel to dc, but we don't have any dcs floating around.

04:22 We have a cd over here.

04:29 And so that would be right here is where we have the.

04:34 C d's.

04:38 So if we wanted, we could rewrite this as, so the vector cd is really the vector negative dc.

04:55 And so then we can just go ahead and replace dc with ab.

05:01 So this is going to be the negative ab.

05:04 So we're going to replace each of these right there...
