Dielectric materials used in the manufacture of capacitors...

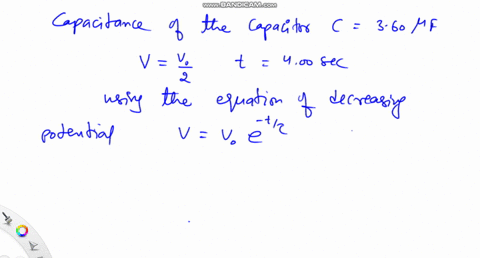

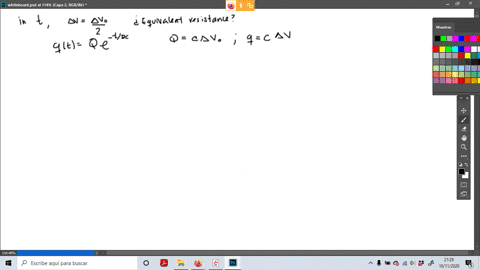

Dielectric materials used in the manufacture of capacitors are characterized by conductivities that are small but not zero. Therefore, a charged capacitor slowly loses its charge by "leaking" across the dielectric. If a capacitor having capacitance $C$ leaks charge such that the potential difference decreases to half its initial value in a time $t$, what is the equivalent resistance of the dielectric?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Dielectric Leakage

In real capacitors, the insulating (dielectric) material does not act as a perfect insulator; it exhibits a small but finite conductivity. This imperfection can be modeled by an equivalent leakage resistance across the capacitor, representing the slow discharge of stored charge over time. This concept is vital in understanding practical capacitor behavior and non-ideal circuit designs.

RC Time Constant

The RC time constant, defined as the product of resistance (R) and capacitance (C), characterizes the rate at which a capacitor charges or discharges in an RC circuit. It determines how quickly the voltage across the capacitor decays exponentially. In the context of leakage through a dielectric, the time constant reflects the rate of charge decay due to the finite leakage resistance.

Exponential Decay in Capacitors

When a capacitor discharges through a resistor, the voltage decreases exponentially with time, following the equation V = V? e^(?t/RC). This principle is used to model the leakage process in capacitors where the voltage diminishes to a fraction (such as one-half) of its initial value over a specific time interval. The half-life relation, involving the natural logarithm of 2, helps derive the equivalent resistance of the dielectric.
