Discuss the stability of (a) a submerged and (b) a floating body whose center of gravity is abov

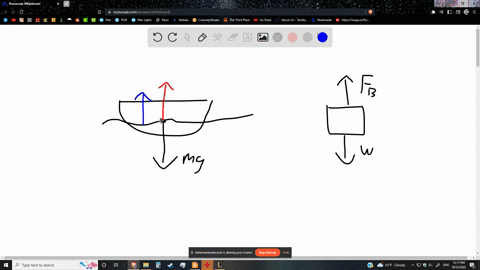

step 1 Here, we know that the buoyancy force is equaling the mass of the fluid displaced times G. And t

Discuss the stability of (a) a submerged and (b) a floating...

Key Concepts

Stability Analysis (Restoring and Overturning Moments)

Stability in both submerged and floating bodies is determined by the balance between restoring and overturning moments. In a submerged body, if the center of gravity is above the center of buoyancy, any slight rotation creates a torque that further displaces the body, leading to an unstable equilibrium. Similarly, for a floating body, having the center of gravity above the center of buoyancy generally implies that the metacentric height might be insufficient to counteract overturning moments, resulting in reduced or negative stability.

Metacentric Height

For floating bodies, the concept of the metacenter and metacentric height is fundamental to assessing stability. The metacenter is the point where the line of action of buoyancy intersects the vertical axis when the body is slightly tilted. The metacentric height, defined as the distance between the center of gravity and the metacenter, indicates stability; a positive metacentric height means a restoring moment exists. When the center of gravity is above the center of buoyancy, the metacentric height may be reduced, risking instability if it falls below the center of gravity.

Center of Gravity

The center of gravity is the point where the weight of a body is considered to be concentrated. It plays a crucial role in stability because its position relative to other forces determines the overall torque acting on the body. When the center of gravity is high, particularly above the center of buoyancy, it can promote a top-heavy condition that may lead to instability as small disturbances can result in unbalancing moments that worsen displacement.

Center of Buoyancy

The center of buoyancy is the centroid of the displaced fluid volume and is the point through which the buoyant force is considered to act. Its location shifts with the shape and orientation of the body. In stability analysis, the relative positions of the center of buoyancy and the center of gravity determine whether a restoring torque (stabilizing effect) or an overturning torque (destabilizing effect) is generated when the body is perturbed.
