Disk brakes, such as those in your car, operate by using...

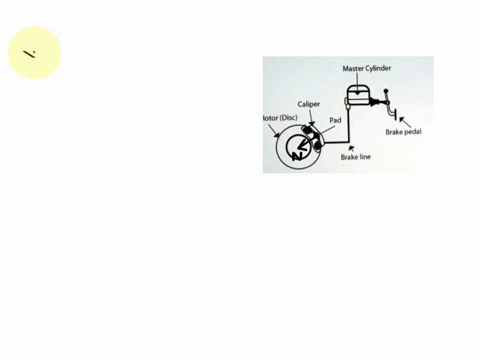

Disk brakes, such as those in your car, operate by using pressurized oil to push outward on a piston. The piston, in turn, presses brake pads against a spinning rotor or wheel, as seen. Consider a $15 \mathrm{kg}$ industrial grinding wheel, $26 \mathrm{cm}$ in diameter, spinning at 900 rpm. The brake pads are actuated by 2.0-cm-diameter pistons, and they contact the wheel an average distance $12 \mathrm{cm}$ from the axis. If the coefficient of kinctic friction between the brake pad and the wheel is $0.60,$ what oil pressure is needed to stop the wheel in 5.0 s?

Key Concepts

Rotational Dynamics

This concept involves the study of objects in rotational motion, including how angular velocity, angular acceleration, and the applied torque interact. It establishes how the rate of change of angular motion is directly related to the net torque acting on the system and the moment of inertia of the rotating body.

Moment of Inertia

The moment of inertia is a measure of an object's resistance to changes in its rotational motion. It depends on both the mass of the object and the distribution of that mass with respect to the rotation axis, and it plays a crucial role in determining how much torque is needed to achieve a desired angular acceleration or deceleration.

Angular Velocity Conversion

Angular velocity conversion is the process of converting the rotational speed from revolutions per minute (RPM) to radians per second, which is necessary for using standard units in rotational kinematics and dynamics equations. This conversion is essential for accurately calculating angular acceleration and the associated forces.

Frictional Force and Torque

Frictional force arises from the interaction between two contacting surfaces and is usually quantified by the product of the normal force and the coefficient of kinetic friction. When this force is applied at a distance from the rotational axis, it generates a torque that opposes the motion, providing a braking effect.

Hydraulic Pressure and Force Transmission

This concept explains how hydraulic systems use pressurized fluids to transmit force. In braking systems, oil pressure acting on the area of a piston creates a force. This force, when applied to brake pads, is converted into a frictional force that produces a torque to oppose and slow down the rotational motion.
