Draw a circuit using a battery, a lamp, a potentiometer to adjust the lamp's brightness, and an on-off switch.

   Draw a circuit using a battery, a lamp, a potentiometer to adjust the lamp's brightness, and an on-off switch.

Physics Principle and Problems

Physics Principle and Problems

Paul W. Zitzewitz,… 1st Edition

Chapter 22, Problem 15

Instant Answer

Solved by Expert Chinmai Managoli

05/27/2020

Step 1

Also have connecting wires. Show more…

Show all steps

lock

Thanks for your feedback!

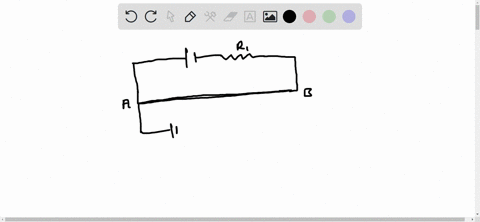

Draw a circuit using a battery, a lamp, a potentiometer to adjust the lamp's brightness, and an on-off switch.

Play audio

Feedback

Powered by NumerAI

Chinmai Managoli and 85 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

On-Off Switch

An on-off switch is a fundamental control component that breaks or completes the electrical circuit. It allows users to control the flow of electricity, turning the circuit on to allow current to flow or off to interrupt the current, thereby controlling the operation of the connected components.

Potentiometer

A potentiometer is a variable resistor that allows for adjustable control of voltage or current in a circuit. By changing its resistance, it can effectively control the brightness of a lamp or adjust signal levels, making it an essential component for fine-tuning circuit performance.

Circuit Diagram

A circuit diagram is a schematic representation of an electrical circuit, using standardized symbols to represent components like power sources, loads, and control devices. It helps in visualizing the connectivity and function of each component, making it easier to analyze and construct the circuit.

Battery

A battery is a device that provides electrical energy by converting stored chemical energy into electrical energy. It serves as the power source in a circuit, delivering a steady voltage that drives electrical current through the various components.

Lamp

A lamp, in the context of an electrical circuit, represents a load that converts electrical energy into light and sometimes heat. It is used to demonstrate the practical application of electrical power, as well as to show how current flows through a circuit.
