Draw a Moseley plot, similar to Figure 8.16, for the La X rays using the following energies in k

step 1 Okay, so we need to make a mostly plot given the data from your textbook. So this is the mostly

Draw a Moseley plot, similar to Figure 8.16, for the La X...

Draw a Moseley plot, similar to Figure $8.16,$ for the $L_{a} \mathrm{X}$ rays using the following energies in keV: $$ \begin{array}{llll} \text { Mn } & 0.721 & \text { Rh } & 2.89 \\ \text { Zn } & 1.11 & \text { Sn } & 3.71 \\ \text { Br } & 1.60 & \text { Cs } & 4.65 \\ \text { Zr } & 2.06 & \text { Nd } & 5.72 \end{array} $$ Give interpretations of the slope and intercept.

Draw a Moseley plot, similar to Figure $8.16,$ for the $L_{a} \mathrm{X}$ rays using the following energies in keV:
$$
\begin{array}{llll}
\text { Mn } & 0.721 & \text { Rh } & 2.89 \\
\text { Zn } & 1.11 & \text { Sn } & 3.71 \\
\text { Br } & 1.60 & \text { Cs } & 4.65 \\
\text { Zr } & 2.06 & \text { Nd } & 5.72
\end{array}
$$
Give interpretations of the slope and intercept.

Key Concepts

Moseley’s Law

This law establishes that the frequency (or energy) of characteristic X-rays is proportional to the square of the effective nuclear charge experienced by the electron making the transition. When expressed in the form ?(energy) ? (Z - ?), it shows that plotting the square root of the X?ray energy against atomic number yields a straight line. This linear relationship supports the idea that inner electron interactions and nuclear charge govern X?ray emission energies.

Characteristic X?Rays

Characteristic X?rays are emitted when an electron transitions between specific inner atomic shells, filling a vacancy in a deeper shell. For example, L_a X-rays refer to transitions resulting in the emission of photons with energies particular to the L shell. These emissions are fundamental to the study of atomic structure and confirm quantized energy levels within atoms.

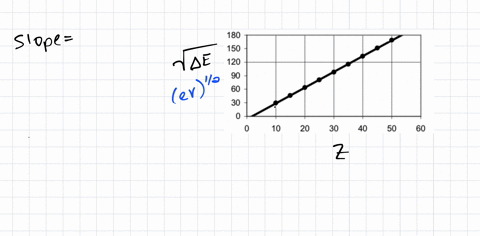

Moseley Plot

A Moseley plot is a graph where the square root of the energy or frequency of emitted X?rays is plotted against the atomic number. The linearity of this plot reflects the relationship asserted by Moseley’s law, and the analysis of its slope and intercept can yield information about the underlying physics of electron transitions, such as the effective nuclear charge and the screening caused by inner electrons.

Effective Nuclear Charge and Electron Screening

The intercept of the Moseley plot is associated with the screening constant (?), which quantifies the reduction in nuclear charge due to the presence of other electrons. The slope, on the other hand, is related to fundamental constants and the energy difference between electronic shells, reflecting how the effective nuclear charge increases with atomic number. Together, these parameters give insight into atomic structure and the forces acting on inner electrons.
