Draw all possible resonance structures for each of these compounds. Determine the formal charge on each atom (a) $\mathrm{O}_{3}$(b) $\mathrm{SO}_{2}$(c) $\mathrm{NO}_{2}-$(d) $\mathrm{NO}_{3}-$in each of the resonance structures:

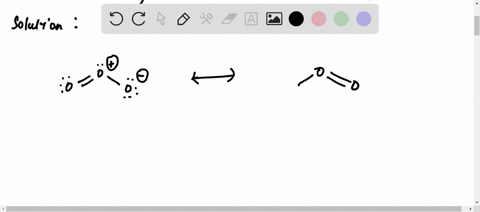

a) see structureFormal charge in atoms of structure (l)Central oxygen atom, Formal charge $=6-2-\frac{6}{2}=+1$Oxygen atom on left, Formal charge $=6-4-\frac{4}{2}=0$Oxygen atom on right, Formal charge $=6-6-\frac{2}{2}=-1$Formal charge in atoms of structure (ll)Central oxygen atom, Formal charge $=6-2-\frac{6}{2}=+1$Oxygen atom on right, Formal charge $=6-4-\frac{4}{2}=0$Oxygen atom on left, Formal charge $=6-6-\frac{2}{2}=-1$b) see structureFormal charge in atoms of structure (l)Sulfur atom, Formal charge $=6-2-\frac{8}{2}=0$Oxygen atom on right, Formal charge $=6-4-\frac{4}{2}=0$Oxygen atom on left, Formal charge $=6-4-\frac{4}{2}=0$Formal charge in atoms of structure (ll)Sulfur atom, Formal charge $=6-2-\frac{6}{2}=+1$Oxygen atom on left, Formal charge $=6-4-\frac{4}{2}=0$Oxygen atom on right, Formal charge $=6-6-\frac{2}{2}=-1$Formal charge in atoms of structure (lll)Sulfur atom, Formal charge $=6-2-\frac{6}{2}=+1$Oxygen atom on right, Formal charge $=6-4-\frac{4}{2}=0$Oxygen atom on left, Formal charge $=6-6-\frac{2}{2}=-1$c) see structureFormal charge in atoms of structure (l)Nitrogen atom, Formal charge $=5-2-\frac{6}{2}=0$Oxygen atom on left, Formal charge $=6-4-\frac{4}{2}=0$Oxygen atom on right, Formal charge $=6-6-\frac{2}{2}=-1$Formal charge in atoms of structure (ll)Nitrogen atom, Formal charge $=5-2-\frac{6}{2}=0$Oxygen atom on right, Formal charge $=6-4-\frac{4}{2}=0$Oxygen atom on left, Formal charge $=6-6-\frac{2}{2}=-1$d) see structureFormal charges in structure (l)Nitrogen atom, Formal charge $=5-0-\frac{8}{2}=+1$Oxygen atom on right, Formal charge $=6-6-\frac{2}{2}=-1$Oxygen atom on left, Formal charge $=6-6-\frac{2}{2}=-1$Oxygen atom on the top of nitrogen, Formal charge $=6-4-\frac{4}{2}=0$Formal charges in structure (II)Nitrogen atom, Formal charge $=5-0-\frac{8}{2}=+1$Oxygen atom on right, Formal charge $=6-6-\frac{2}{2}=-1$Oxygen atom on left, Formal charge $=6-4-\frac{4}{2}=0$Oxygen atom on the top of nitrogen, Formal charge $=6-6-\frac{2}{2}=-1$Formal charges in structure (III)Nitrogen atom, Formal charge $=5-0-\frac{8}{2}=+1$Oxygen atom on right, Formal charge $=6-4-\frac{4}{2}=0$Oxygen atom on left, Formal charge $=6-6-\frac{2}{2}=-1$Oxygen atom on the top of nitrogen, Formal charge $=6-6-\frac{2}{2}=-1$
