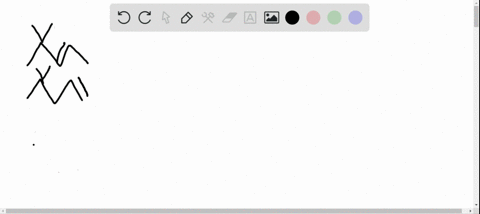

Draw all possible skeletons for a seven-C compound with (a) A six-C chain and one double bond (b

step 1 Hi, in this problem, we are given a seven carbon compound. We have to make all the possible skel

Draw all possible skeletons for a seven-C compound with (a)...

Key Concepts

Double Bond Positional Isomerism

Double bond positional isomerism involves variations in the location of a double bond within the carbon skeleton. Even when the overall count of carbons and unsaturation levels are fixed, shifting the position of the double bond can lead to distinctly different compounds. This concept is vital when enumerating possible structures, as each unique placement of the double bond (especially in an open chain) yields a separate constitutional isomer.

Cyclic Structures in Organic Chemistry

Cyclic structures are molecules where the carbon atoms form a closed ring rather than an open chain. This concept is important because rings introduce different degrees of stability, strain, and reactivity compared to linear chains. When considering a ring versus a chain structure, the way carbon atoms are connected dramatically affects the number of unique isomers possible, especially when additional functionalities like double bonds are present or absent.

Structural Isomerism

Structural isomerism refers to the phenomenon where compounds with the same molecular formula have different connectivity of atoms. This fundamental concept in organic chemistry explains how molecules with identical numbers of atoms can exhibit distinct physical and chemical properties due to the way their atoms are arranged. It underpins the idea of drawing different skeletons for a compound based on variations in the main chain, branching, and the locations of functional groups, such as double bonds or rings.

Carbon Chain Skeletons

Carbon chain skeletons are the backbone structures of organic molecules, consisting solely of carbon atoms linked together in various arrangements like straight chains or branched configurations. Understanding the different possible skeletons is crucial when predicting or drawing isomers, as the connectivity and length of the carbon chain (e.g., a six-carbon chain vs a five-carbon chain) have a significant impact on the overall molecular structure and reactivity.

Transcript

00:02 Hi, in this problem, we are given a seven carbon compound.

00:06 We have to make all the possible skeletons with the given conditions.

00:12 The first one is a six carbon chain and one double bond.

00:16 So in this case, we will write down the skeletal structures with total seven carbon atoms where the compound has a six carbon chain and one double bond present.

00:27 So let's start with the skeleton structures.

00:30 The first one is having this structure where one carbon atom is present as substitute bonded to this double bonded carbon atom.

00:43 Another structure possible with the same number of atoms is this where the substituted carbon is the third one.

00:57 Then we have this structure where the substitute is present at this carbon atom.

01:09 One more structure we can make and substitute carbon is present at this.

01:19 The next one is this structure where the double bone is present between second and the third carbon atom and substitution is here.

01:34 Then we can make this structure with the same kind of atoms.

01:40 And the substituted carbon is this carbon.

01:47 In the structure is this one.

01:54 One more structure is this one.

02:02 Then we can have more structures with the same kind of arrangement.

02:08 That is double bone is now shifted between carbon 3 and carbon 4 and the substitutant is present here.

02:22 One more structure where we can write the subsequent here and we can have one more structure with this kind of possible arrangement.

02:41 So all these are the skeletal structures for the compound having seven carbon atom where the chain is of six carbon atom and one double bond is present in the compound.

02:54 Then we have to make the structures for a five carbon chain.

02:58 With one double bond.

03:01 So in this, the two carbon atoms will be present as substituent...
