Draw each of the following angles in standard position and...

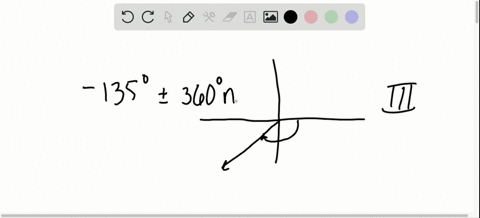

Draw each of the following angles in standard position and then do the following:
a. Name a point on the terminal side of the angle.
b. Find the distance from the origin to that point.
c. Name another angle that is coterminal with the angle you have drawn.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Standard Position

In the context of angles, standard position means that the angle has its vertex at the origin of the coordinate plane and its initial side along the positive x-axis. This placement simplifies the analysis and measurement of the angle, including finding points on its terminal side.

Terminal Side

The terminal side of an angle in standard position is the ray that is produced after the angle's rotation from its initial side. It determines the endpoint (or any chosen point) that can be evaluated with respect to its coordinates and distance from the origin.

Distance from the Origin

The distance from the origin to any point is measured using the distance formula, which is derived from the Pythagorean theorem. This concept is essential for determining how far a point on the terminal side of an angle is from the origin.

Coterminal Angles

Coterminal angles are angles that, despite having different measurements, share the same terminal side when drawn in standard position. They are found by adding or subtracting full rotations (360 degrees or 2? radians) and are useful for identifying equivalent angular positions.
