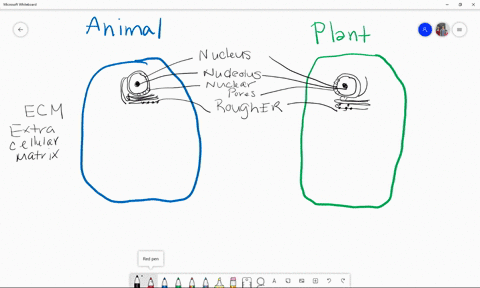

DRAW IT From memory, draw two eukaryotic cells. Label the structures listed here and show any ph

step 1 So chapter six, question six, is going to be a very long one. So it asks us to draw eukaryotic c

DRAW IT From memory, draw two eukaryotic cells. Label the...

Key Concepts

Cytoskeleton Components

The cytoskeleton is a dynamic network of protein filaments that provides structural integrity, facilitates intracellular transport, and plays a role in cell division and movement. It is composed of microtubules, microfilaments, and intermediate filaments, each offering unique mechanical properties and working together to maintain cell shape and enable interactions between organelles.

Cell Wall and Extracellular Matrix (ECM)

The cell wall, present in plant cells and certain other eukaryotes, provides structural support and protection, giving the cell its firmness and shape. In contrast, the extracellular matrix (ECM) is a complex network of proteins and carbohydrates found outside animal cells that provides structural scaffolding, facilitates cell adhesion, and modulates intercellular communication, playing a key role in tissue organization.

Plasma Membrane

The plasma membrane is the selective barrier that defines the boundary of the cell and regulates the entry and exit of substances. Comprised primarily of a lipid bilayer interspersed with proteins, it is crucial in maintaining the internal environment of the cell, facilitating communication with external signals, and contributing to cell adhesion and integrity.

Centrosomes

Centrosomes serve as the main microtubule-organizing centers in eukaryotic cells and are pivotal in regulating the cell cycle, particularly during mitosis. They help organize the mitotic spindle, which is essential for the accurate segregation of chromosomes during cell division, thereby ensuring proper genetic inheritance.

Cellular Protrusions and Intercellular Connections

Eukaryotic cells often feature specialized structures such as flagella and microvilli that extend from the plasma membrane. Flagella are used for locomotion, while microvilli increase the cell’s surface area to enhance absorption and secretion. Additionally, structures like plasmodesmata in plant cells serve as channels that directly connect the cytoplasm of adjacent cells, allowing for coordinated signaling and transport between cells.

Ribosomes

Ribosomes are the molecular machines responsible for synthesizing proteins by translating messenger RNA into polypeptide chains. They can be found either attached to the rough endoplasmic reticulum or free floating in the cytoplasm, and are essential for the proper production and maintenance of cellular proteins, which are critical for virtually all cell functions.

Eukaryotic Cell Architecture

Eukaryotic cells are defined by their compartmentalized structure, with each compartment (or organelle) carrying out specific functions. This organization allows for the separation of the cell’s processes into distinct biochemical environments, enhancing efficiency and regulation. The overall structure includes a defined nucleus containing genetic material, a complex endomembrane system, and additional organelles that each contribute uniquely to the cell’s survival and functionality.

Mitochondria and Chloroplasts

Mitochondria are known as the cell’s powerhouses because they generate adenosine triphosphate (ATP) through cellular respiration, playing a critical role in energy metabolism. Chloroplasts, found in plants and some protists, perform photosynthesis to convert light energy into chemical energy stored as sugars. These organelles underscore how eukaryotic cells adapt to different energy requirements and environmental conditions.

Golgi Apparatus

The Golgi apparatus functions as the cell’s packaging and distribution center. It receives proteins and lipids from the ER, further modifies them, and then sorts and packages these biomolecules into vesicles for transport to their destinations. This organelle is essential for processing and dispatching the products of cellular synthesis in a tightly regulated manner.

Endoplasmic Reticulum

The endoplasmic reticulum (ER) is an extensive membrane network that comes in two forms: rough ER, characterized by ribosomes attached to its surface, and smooth ER, which lacks ribosomes. The rough ER is primarily involved in the synthesis and initial processing of proteins, while the smooth ER plays roles in lipid synthesis and detoxification, making this organelle integral to the cell’s endomembrane system.

Nucleus and Nucleolus

The nucleus is the control center of the cell, housing the genome and coordinating activities like growth, metabolism, and reproduction. Within the nucleus, the nucleolus is a dense region responsible primarily for the synthesis of ribosomal RNA and the assembly of ribosome subunits. Additionally, nuclear pores embedded in the nuclear envelope regulate the traffic of molecules between the nucleus and cytoplasm.

Membrane-Bound Organelles

A hallmark of eukaryotic cells is the presence of membrane-bound organelles, such as the nucleus, mitochondria, chloroplasts, endoplasmic reticulum, and Golgi apparatus. These compartments are enclosed by lipid bilayers that provide controlled environments for essential processes, including energy production, photosynthesis, protein synthesis, and intracellular transport, thereby allowing specialized functions to occur simultaneously within the cell.

Vacuoles, Lysosomes, and Peroxisomes

Vacuoles function predominantly as storage compartments for nutrients, waste products, and other materials, with a large central vacuole being characteristic of plant cells. Lysosomes contain hydrolytic enzymes used to break down macromolecules and recycle cellular debris, while peroxisomes are involved in oxidative reactions and the detoxification of harmful substances. Together, these organelles help maintain cellular homeostasis and manage waste.

Transcript

00:01 So chapter six, question six, is going to be a very long one.

00:07 So it asks us to draw eukaryotic cells containing certain structures and any physical connections between the structures.

00:15 So they want you to label the nucleus, the rough er, the smooth er, mitochondrion, centrosome, chloropass, vacuole, lysosome, microtubial cell wall, extracellular matrix, microfilament, golgi apparatus, intermediate filament, plasma membrane, paroxosome, ribosome, nucleolus, nuclear pore, vesicle, phlegelum, microvilli, and plasmodesma.

00:38 So some of these are located in both plant and animal cells.

00:43 Some of them are only located in plant cells.

00:46 Some are only located in animal cells.

00:48 But by drawing a plant cell and an animal cell, we would be able to draw all of these structures.

00:55 So we've already got the images of these cells provided in camp well, which you can see here.

01:05 And we're just going to try to recreate that on our own.

01:08 So let's start off by doing the animal cell and see how many cellular structures we can create.

01:17 So let's start off with the plasma membrane on the outside.

01:23 And you want to make this really big.

01:25 And i would suggest making a key off to the side where you label what, so we're just going to make abbreviations in our picture and then have a key on the side.

01:41 I'm not going to draw the key because that would be, that would make it very cluttered for you.

01:47 It would be very difficult, but make sure that you have your key here so that you can, so that your professor can know what you're referring to.

02:00 So let's start off on the outside.

02:03 So that's the plasma membrane.

02:05 So pm, we've already got one structure down.

02:09 And then we're going to work from the inside out.

02:12 The next thing that we're going to make is going to be our nucleus.

02:23 Within our nucleus, there's going to be a very dense structure known as nucleolus where the rna for riposomes is created.

02:40 So we'll call that n -e.

02:45 So make sure that you have pm, which means plasma membrane.

02:49 N means nucleus.

02:51 N.

02:51 E means nucleolus.

02:53 On your nucleus, you're going to have small holes.

02:58 And these are what are known as nuclear pores.

03:05 So we can just erase little parts here and call these nuclear pores.

03:16 And we'll label that np.

03:20 Around that, we're going to have our endoplasmic reticulum, our er.

03:26 So that is going to go all around the nucleus.

03:34 And be very close and very close contact with the nucleus.

03:40 So within your er, some of it is going to have little dots.

03:49 These dots are going to represent ribosomes.

03:53 So we'll call this dot our ribosome r.

03:58 We're going to be sure to include that in our key.

04:01 We're going to label this part, of the endoplasmic reticulum with ribosomes as r -e -r.

04:29 We're going to label this part without ribosomes as smooth er, so s -e -r.

04:36 And again, we're going to make sure to include that in our key.

04:49 Around this, we're going to have our golgi bodies, which are basically right up next to our endoplasmic retic.

05:02 Particular next to our nucleus, we're going to have our centrials, which basically look like two churros next to each other at right angles if you know what a churro is.

05:24 So let's see, let's make it a little bit closer.

05:36 We'll label that c.

05:39 From there, we're going to have a lot of microtubules coming out towards the plasma membrane.

05:52 So we'll label that mt.

06:02 And then let's go back and start crossing off some of the structures that we've already created in our plant cell, i mean in our animal cell.

06:14 So we've already got our nucleus, rough er, smooth er.

06:26 We've got our centrosome, we've got microtubules.

06:33 We've got our golgi apparatus.

06:37 We've got our plasma membrane.

06:40 We've got ribosomes.

06:42 We've got a nucleolus.

06:45 We've got nuclear pores.
