Draw some of the electric field lines between each of the following.
a. two like charges of equal magnitude

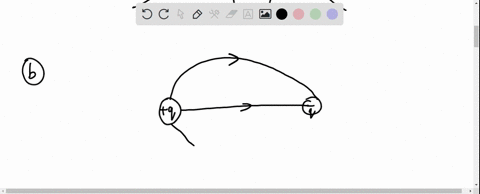

b. two unlike charges of equal magnitude
c. a positive charge and a negative charge having twice the magnitude of the positive charge
d. two oppositely charged parallel plates

Key Concepts

Non-Uniform Charge Magnitudes

When charges of different magnitudes are present, such as a positive charge and a negative charge with twice the magnitude, the resulting electric field lines are asymmetrically distributed. More lines originate from or are drawn toward the larger magnitude charge, reflecting the stronger influence it exerts on the surrounding electric field.

Interaction of Unlike Charges

Unlike charges, where one is positive and the other negative, attract each other. The electric field lines are drawn starting from the positive charge and ending on the negative charge, visually representing the attractive force between them. The distribution of these lines indicates how the electric field is influenced by the positions and magnitudes of the charges.

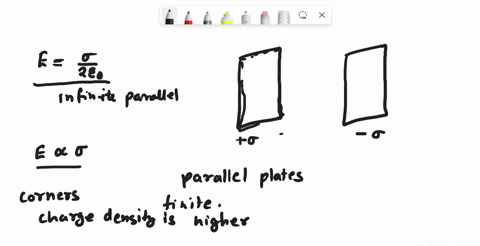

Uniform Electric Field in Parallel Plates

Oppositely charged parallel plates produce a uniform electric field in the region between them. In this configuration, the field lines are drawn as nearly parallel and evenly spaced, indicating a constant magnitude and direction of the electric field within the central region between the plates. This concept is important for understanding devices like capacitors and the behavior of fields in idealized environments.

Electric Field Lines

Electric field lines are a visual representation of the electric field around charges. They indicate both the direction and relative magnitude of the field; the tangent at any point on a line gives the direction of the electric field at that point. Field lines originate from positive charges and end on negative charges, with the density of the lines representing the field strength.

Interaction of Like Charges

When two like charges are involved, both are either positive or negative, and they repel each other. The field lines in this scenario are drawn such that they diverge away from each charge because the electric field produced by one charge pushes away the field produced by the other, creating a region of minimal interaction between the charges.
