Draw structures corresponding to the following IUPAC names: (a) 2-Ethylbut-2-en-1-ol (b) Cyclohe

Draw structures corresponding to the following IUPAC names:...

Key Concepts

IUPAC Nomenclature Rules

IUPAC nomenclature is a systematic method for naming organic compounds. It establishes guidelines for identifying the longest carbon chain, determining the correct numbering of atoms to assign positions to functional groups and substituents, and dealing with multiple functional groups or unsaturations. This standardization aids in accurately communicating chemical structures among chemists.

Functional Group Identification

Recognizing functional groups like alcohols (–OH), thiols (–SH), halogens (e.g., –Cl), and double bonds (alkenes) is central to organic chemistry. Each group has characteristic reactivity and influences both the physical and chemical properties of the molecule. Correct identification of these groups is essential for drawing the corresponding chemical structures from their names.

Handling Unsaturation

Unsaturations, represented by double bonds in organic molecules, introduce structural rigidity and affect chemical reactivity. Proper interpretation of the location and configuration of these double bonds is crucial. This includes understanding the nomenclature indicators such as ‘en’ for alkenes in a compound's name, which informs the placement of unsaturation within the carbon skeleton.

Cyclic Structures in Organic Chemistry

Cyclic structures encompass both non-aromatic rings, such as cycloalkenes, and aromatic systems like phenol derivatives. Drawing these compounds requires recognizing ring size, identifying substituent positions, and understanding the nature of the ring system, whether it is fully saturated, unsaturated, or aromatic. This concept is essential when converting names that include cyclic descriptors into structural diagrams.

Stereochemistry Considerations

Stereochemistry deals with the spatial arrangement of atoms in molecules, which is often indicated by descriptors such as ‘trans’. Understanding stereochemistry is important because it affects the three-dimensional shape and physical properties of a compound. Determining the relative positions of substituents, especially in cyclic systems or around double bonds, is a fundamental aspect of drawing accurate structures.

Transcript

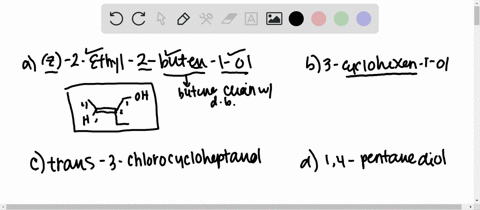

00:01 So for this question, we're given the names of some organic alcohol containing molecules, and we're asked to draw what these molecules look like based on the name.

00:12 So let's begin with a.

00:15 So when i am working from a name to a structure, i like to start with the longest chain.

00:24 So for example, we see here we have butin one all.

00:31 So butin tells me that we should have a butane chain with a double bond.

00:46 That's the n.

00:52 And then i also know that i'm going to have some substituents.

00:58 So the z is going to tell me the configuration about this double.

01:03 Bond.

01:03 So i'm going to go ahead and draw that double bond in.

01:07 So this is two and then three, four.

01:13 So those are our four carbon atoms that make up the butin.

01:18 So now we have two ethyl.

01:21 So i'm going to count one, two.

01:34 So there is my ethyl substituent.

01:37 I see i have a one all.

01:39 So if i count one, two, three, four, that should give me an oh, h.

01:52 So that takes care of the ethyl, the butin, because the double bond then should start at the two carbon and the one all.

02:08 And now i need to check to make sure that.

02:10 The stereochemistry is correct.

02:12 So z means that the largest substituents on each side of the double bond should be on the same face of the double bond.

02:23 So for the left side, that's going to be the methyl here because otherwise we have a hydrogen.

02:31 And for this side, that's going to be the alcohol containing group because the alcohol has the highest molecular weight.

02:39 And so this is a structure of this compound.

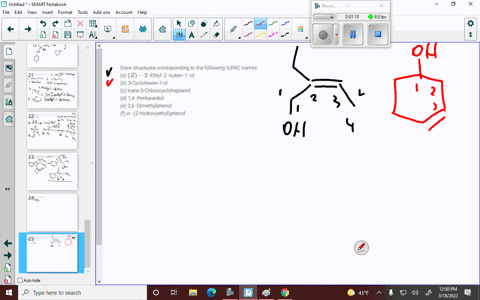

02:49 So now i'm gonna move on to b and i'm going to use the same thought process.

02:54 So i see that i have a cyclohexen.

02:58 So that means that i should have a ring, a six member ring, and it's going to have a double bond in it.

03:06 So i'm gonna go ahead and draw that double bond.

03:09 And now i see that the double bond starts at position three.

03:16 So i'm just gonna label this three.

03:18 So four.

03:19 So we can work back to one, six, five.

03:25 And we have one all.

03:29 So we'll put the alcohol in this position.

03:32 So that takes care of all of our substituents and our base compound.

03:37 So that gives us the following structure.

03:42 Now i'm going to move on to part c...
