Draw the condensed structure of a compound that contains...

Draw the condensed structure of a compound that contains only carbon and hydrogen atoms and that has

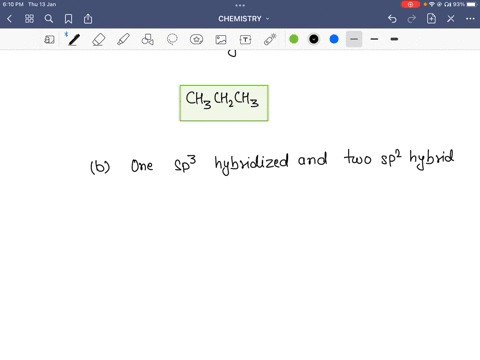

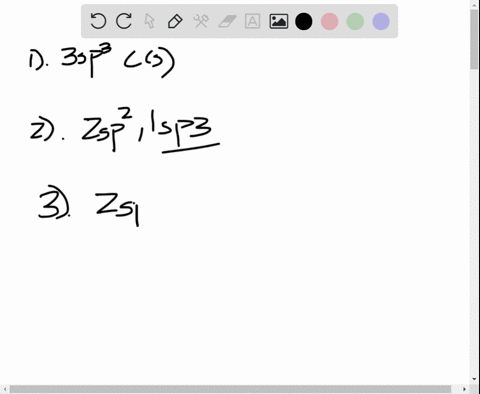

a. three $s p^{3}$ hybridized carbons.
b. one $s p^{3}$ hybridized carbon and two $s p^{2}$ hybridized carbons.
c. two sp^' hybridized carbons and two sp hybridized carbons.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Condensed Structural Formula

This is a simplified way of writing the structure of a molecule where the bonds and connectivity between atoms are indicated without explicitly drawing all bonding electrons or individual bonds. It is particularly useful in organic chemistry to represent the molecular skeleton in a compact form, making it easier to visualize the arrangement of atoms in hydrocarbons and other compounds.

Hybridization

Hybridization refers to the mixing of atomic orbitals to create new orbitals that can form bonds in a molecule. The type of hybridization (such as sp³, sp², and sp) influences the geometry and bond angles around a carbon center. For example, an sp³ carbon typically forms a tetrahedral arrangement, sp² leads to trigonal planar geometry, and sp results in a linear configuration, each affecting the overall structure of organic molecules.

Hydrocarbons

Hydrocarbons are organic compounds composed exclusively of carbon and hydrogen atoms. Their structures can range from simple linear chains to complex ring systems, and variations in bonding (such as single, double, or triple bonds) due to different types of carbon hybridization lead to distinct physical and chemical properties. Understanding hydrocarbons is fundamental in organic chemistry since they form the backbone of many organic molecules.
