Draw the structure for each of the following compounds: a. 3,3 -dimethylcyclopentene b. 6 -bromo

step 1 Okay, so let's start with this. Let's break it down so it's a little bit more easier to kind of

Draw the structure for each of the following compounds: a....

Key Concepts

Functional Groups

In organic chemistry, functional groups such as ethers and alcohols impart specific chemical properties and reactivities to molecules. Understanding how to identify and draw these groups—such as the ethoxy group in vinyl ethers or the hydroxyl group in allyl alcohol—is essential for constructing accurate molecular structures based on their IUPAC names.

Substituent Locants and Positioning

This concept covers the method of assigning numbers to the carbon atoms in a molecule so that substituents like methyl groups, bromo substituents, or others are positioned correctly. It emphasizes the importance of the lowest set of locants for substituents, which is essential for accurately constructing the molecular structure from its name.

IUPAC Nomenclature

This concept involves the systematic naming of organic compounds based on a set of rules that allows chemists to determine the structure of a molecule from its name. It includes identifying the longest continuous carbon chain (or ring), locating double bonds, and correctly numbering the carbon atoms so that substituents like methyl, bromo, or other functional groups receive the lowest possible numbers.

Structural Representation of Organic Molecules

This key concept is about translating the systematic names into actual molecular structures. It involves drawing bond-line structures, identifying the correct positions of substituents, double bonds, and functional groups, and correctly representing cyclic systems versus acyclic chains.

Alkenes and Cycloalkenes

Alkenes are hydrocarbons containing carbon–carbon double bonds, and when these double bonds occur in rings, the compounds are known as cycloalkenes. Understanding these concepts is crucial for drawing the backbone of molecules that include double bonds in either linear or cyclic structures, as well as for applying appropriate numbering rules to ensure the double bond receives the lowest possible locant.

Transcript

00:01 Okay, so let's start with this.

00:03 Let's break it down so it's a little bit more easier to kind of visualize.

00:08 Pentine, five carbons per pent.

00:12 E and e would mean that there is a double bond somewhere in the compound.

00:18 Cyclo, which means that these five carbons are all connected to each other.

00:25 Now here, 3 .3 dimethyl.

00:29 So that means in the third position of our cyclopens, so we're two methyl substituents.

00:38 So if we draw this out and we start with pentine, cyclopentine, we have something like this.

00:47 And now we know there is a double bond somewhere, so let's put it in there.

00:51 There you go.

00:52 And double bonds takes precedence over metal substituents.

00:57 So when numbering our carbons, this will be number one, this will be number two, and the third position would be here.

01:05 Here.

01:07 So that's where our two metals will be.

01:11 So the compound, try a little better, something like this.

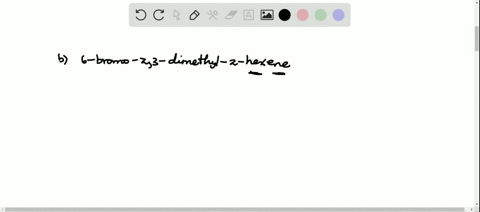

01:21 Okay, so let's do the same thing would be and break it down.

01:26 Hexene, that is six, a double bond somewhere.

01:31 And from this two right here, we know that this double bond is going to be in the second position.

01:38 Die metal.

01:40 In the second and in the third position there is a metal substituent.

01:45 And in the sixth position there is a bromo.

01:48 So there's a bromine substituent at the very at the sixth position of this compound.

01:54 So let's start with the fact that it's a hexene and let's draw six carbon chain.

01:59 So one, two, three, four, five, six.

02:03 And we know in the second position there is a double bond.

02:07 So right here.

02:08 And and there is a 2 -3 die metal.

02:11 So we know that this is the second position because our double bond is found in the second position and it takes precedence over the metal groups.

02:21 So 2, 3.

02:24 And that would mean that the 6th position, which is right here, will be our bromo...
