Draw the structure of a compound with molecular formula C5...

Key Concepts

Carbon Classification

This concept deals with categorizing carbon atoms based on how many other carbons they are directly bonded to. A primary carbon is bonded to only one other carbon, a secondary carbon to two, a tertiary carbon to three, and a quaternary carbon to four. Understanding these definitions is essential for analyzing and drawing organic structures, especially in branched alkanes.

Alkane Structural Isomerism

Alkane isomerism refers to the existence of different compounds with the same molecular formula but different connectivities of the carbon skeleton. For a formula like C5H12, isomerism provides options such as a straight-chain structure or various branched structures; each isomer exhibits distinct arrangements of primary, secondary, tertiary, or quaternary carbons.

Branching in Alkanes

Branching in alkanes significantly influences the types of carbon centers that are present. In designing a structure that contains a tertiary carbon, one has to consider how adding a methyl substituent to a carbon atom results in that carbon being bonded to three other carbons. Conversely, a structure can be arranged to avoid secondary carbons by having only primary and quaternary centers, as seen in highly branched molecules.

Transcript

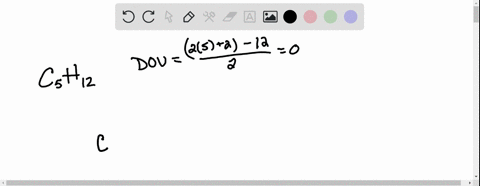

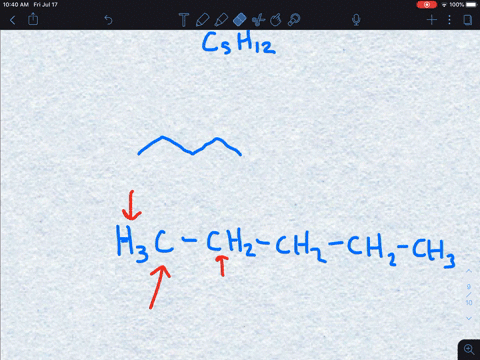

00:01 Okay, this problem is asking us to draw the structures of a compound with a molecular formula c5h12.

00:07 So that means we have five carbons and 12 hydrogens.

00:10 So the first problem is asking us, part a, is asking us to draw a compound that has a tertiary carbon.

00:15 So a tertiary carbon, tersh corresponds to three.

00:18 That means that we have to have a carbon that is connected to three other carbons.

00:22 So i'm going to have five carbons total, but one of those carbons is going to be connected to three.

00:27 So i'll just draw out a carbon right there, and i'm going to have a carbon.

00:30 Immediately connect it to three other carbons, two, three.

00:35 Okay, and of course i'm going to have to draw out my hydrogens eventually, but let's just forget about that right now and focus on the carbons for right now.

00:43 Okay, so i have four carbons right now, and i need one more, so because i've already covered my requirement in which i have a carbon with three other connections to another carbon, that means i'm just going to draw a carbon over here connected to that carbon.

00:55 Okay, so let's just one bond currently, so i need to have three other bonds to make sure that this carbon has a full octet.

01:06 So i need three hydrogens, so ch3.

01:10 Okay, this one, same thing.

01:12 I have one bond currently, i need three more to make sure that has a full octet, so ch3.

01:17 Okay, this middle one right here, my tertiary carbon, that has three bonds.

01:22 Again, i need to make sure it has four bonds, so i need to draw another hydrogen.

01:26 Okay, what about this one? this one has two bonds because it's connected to a carbon.

01:31 And a carbon.

01:32 So two carbons, i need two more bonds, so i need two more hydrogens.

01:36 So c -h.

01:38 Okay, and less but not least, this one, this carbon has one bond, so i need three more, c -h -3.

01:44 Okay, every carbon has a full octet, and let's make sure that we have the number of hydrogen that we need.

01:50 So three, six, seven, nine, 12, perfect, okay, c -5h -12.

01:58 Okay, let's move on to the next one...
