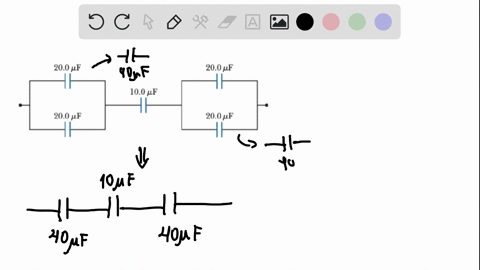

Each capacitor in the combination shown in Figure P 26.49 has a breakdown voltage of 15.0 V. Wha

step 1 Hello friends here it is given each capacitor having the breakdown voltage 15 bolt as soon in th

Each capacitor in the combination shown in Figure P 26.49...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Capacitor Breakdown Voltage

This is the maximum voltage that can be applied across a capacitor before the insulating material (dielectric) fails and breaks down, causing it to conduct. It’s a critical parameter ensuring that the capacitor operates safely under the designed voltage limits, preventing damage or failure in electronic circuits.

Series Connection of Capacitors

In a series arrangement, capacitors share the total applied voltage, meaning the voltage divides across each component. When identical capacitors with the same breakdown voltage are connected in series, the overall breakdown voltage of the combination is the sum of each individual breakdown voltage. This allows the network to endure a higher total voltage than a single capacitor.

Parallel Connection of Capacitors

For capacitors connected in parallel, the voltage across each capacitor is the same as the total applied voltage. This means that even though the overall capacitance increases, the breakdown voltage of the entire network remains the same as that of a single capacitor, making each device subject to the full applied voltage.
