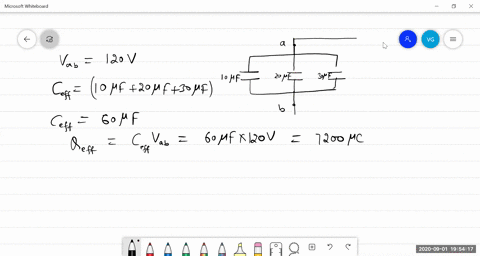

Each combination of capacitors between points $a$ and $b$ in Fig. $P 24.64$ is first connected across a $120-\mathrm{V}$ battery, charging the combination to 120 $\mathrm{V}$ . These combinations are then connected to make the circuits shown. When the switch Sis thrown, a surge of charge for the discharging capacitors flows to trigger the signal device. How much charge flows through the signal device in each case?

Each combination of capacitors between points $a$ and $b$ in Fig. $P 24.64$ is first connected across a $120-\mathrm{V}$ battery, charging the combination to 120 $\mathrm{V}$ . These combinations
are then connected to make the circuits shown. When the switch Sis thrown, a surge of charge for
the discharging capacitors flows to trigger the signal device. How much charge flows through the
signal device in each case?

Key Concepts

Transient Response in Capacitor Circuits

This concept involves the short-lived surge or spike in current that occurs when a capacitor discharges or charges due to a sudden change in a circuit, such as switching. The transient response is critical for understanding how circuits behave immediately after configuration changes, especially in applications like triggering a signal device.

Conservation of Charge

The principle of charge conservation states that the total electric charge in an isolated system remains constant regardless of how it is redistributed among circuit components. This underpins the analysis of switching events where charge transferred between parts of a circuit must account for the initial charge stored in the capacitors.

Capacitance and Stored Charge

This concept centers on the relationship Q = CV, which explains how a capacitor stores electrical energy in the form of electric charge. The voltage across a capacitor and its capacitance determine the amount of charge it holds, and this relationship is fundamental to understanding how capacitors behave when connected to different voltage sources.

Series and Parallel Combinations of Capacitors

Understanding how capacitors combine in series and parallel is essential for analyzing complex circuits. When capacitors are in series, the effective capacitance is less than any individual capacitor because the total voltage divides across them; in parallel, the overall capacitance is the sum of the individual capacitances, allowing more charge storage at the same voltage.

Circuit Reconfiguration and Switching

This key concept involves the process of rearranging the connections in a circuit, such as through the use of a switch. When the configuration changes, the voltage distribution across the components is altered, leading to a transient flow of charge as the system moves toward a new equilibrium state.
