Each of the 3 -kg bars A B and B C is of length L=500 mm . A horizontal force P of magnitude 20

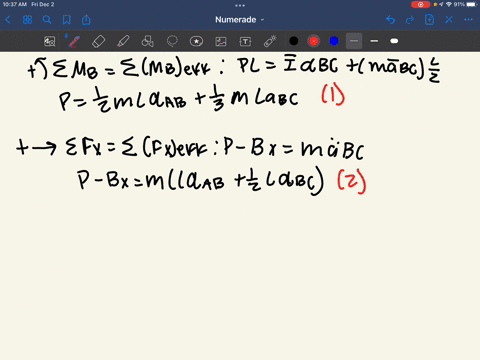

Step 1: First, we need to calculate the moment of inertia for each bar. The moment of inertia fo

Each of the 3 -kg bars A B and B C is of length L=500 mm . A...

Each of the 3 -kg bars $A B$ and $B C$ is of length $L=500 \mathrm{mm} .$ A horizontal force $\mathrm{P}$ of magnitude $20 \mathrm{N}$ is applied to bar $B C$ as shown. Knowing that $b=L(P \text { is applied at } C),$ determine the angular acceleration of each bar.

Key Concepts

Free-Body Diagrams

Free-body diagrams are graphical representations used to visualize all the forces acting on a body. In the context of rotational dynamics, these diagrams help in identifying the forces and their corresponding lever arms, which in turn are used to compute the net torque and analyze the angular acceleration of the system.

Torque

Torque is the measure of the force that can cause an object to rotate around an axis. It is calculated as the product of the force and the perpendicular distance (lever arm) from the pivot point. Torque plays a central role in rotational dynamics, as the net torque acting on an object determines its angular acceleration.

Rotational Dynamics

Rotational dynamics is the study of the motion of bodies when they rotate. This concept involves applying Newton's second law in its rotational form, where the net torque on a body is equal to its moment of inertia multiplied by its angular acceleration. It is crucial for analyzing systems where forces cause rotation rather than linear movement.

Moment of Inertia

The moment of inertia is a measure of an object's resistance to changes in its rotational motion. It depends on the mass distribution relative to the axis of rotation. Accurately determining the moment of inertia is essential in problems involving angular acceleration, as it directly influences how the object responds to applied torques.
