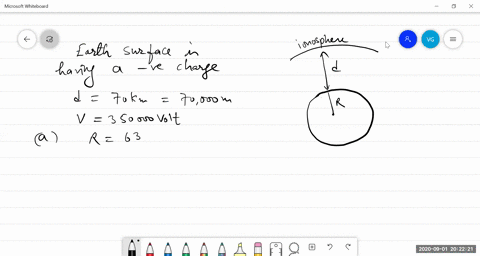

Earth-Ionosphere Capacitance. The earth can be con-sidered as a single-conductor capacitor (see Problem 24.67$)$ . It can also be considered in combination with a charged layer of the atmosphere, the ionosphere, as a spherical capacitor with two plates, the surface of the earth being the negative plate. The ionosphere is at a level of about $70 \mathrm{km},$ and the potential difference between earth and ionosphere is about $350,000 \mathrm{V}$ . Calculate: (a) the capacitance of this system; (b) the total charge on the capacitor; (c) the energy stored in the system.

Key Concepts

Spherical Capacitor

A spherical capacitor consists of two concentric spherical conductors, where the inner and outer surfaces serve as the two plates of the capacitor. Its capacitance is derived based on the radii of the two spheres and is used to model systems with spherical symmetry, providing insights into how geometry influences the ability to store electrical energy.

Capacitance

Capacitance is the measure of a system's ability to store electric charge per unit potential difference. It is defined as the ratio of the stored charge to the voltage across the plates, and it depends on both the physical dimensions of the conductors and the properties of the dielectric medium between them.

Electric Potential Difference

Electric potential difference, commonly referred to as voltage, is the difference in electric potential energy per unit charge between two points. This concept is fundamental in driving the movement of charge and is directly related to the amount of energy that can be stored in a capacitor.

Stored Energy in a Capacitor

The energy stored in a capacitor is determined by the capacitance and the voltage across it, typically expressed by the formula 1/2CV². This concept explains how electrical energy is accumulated within the electric field of the capacitor and can be later released to perform work.

Charge-Voltage Relationship

The charge on a capacitor is directly proportional to the voltage applied across its plates, as expressed by the relation Q = CV. This relationship is essential for understanding how varying the voltage affects the stored charge and, by extension, the energy stored in the capacitor.
