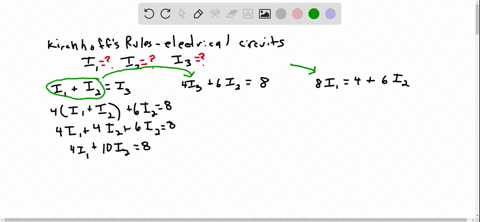

Electricity: Kirchhoffs Rules An application of Kirchhoff's Rules to the circuit shown below results in the following system of equations:
$$
\left\{\begin{aligned}
I_{3} &=I_{1}+I_{2} \\
8 &=4 I_{3}+6 I_{2} \\
8 I_{1} &=4+6 I_{2}
\end{aligned}\right.
$$
Find the currents $I_{1}, I_{2},$ and $I_{3}$
(IMAGE CAN'T COPY)

Key Concepts

Kirchhoff's Circuit Laws

Kirchhoff's circuit laws form the foundation of circuit analysis by providing rules to calculate the currents and voltages in a network. The two main laws are Kirchhoff's Current Law (KCL) and Kirchhoff's Voltage Law (KVL), which reflect the conservation of charge and energy, respectively, and are essential for setting up equations that describe the behavior of electrical circuits.

Kirchhoff's Current Law (KCL)

Kirchhoff's Current Law (KCL) states that the total current entering a junction or node in a circuit is equal to the total current leaving that node. This principle arises from the conservation of electric charge and is used to relate the currents in different branches of a circuit, forming one set of equations in circuit analysis.

Kirchhoff's Voltage Law (KVL)

Kirchhoff's Voltage Law (KVL) states that the algebraic sum of all electrical potential differences around any closed loop in a circuit must be zero. This law is a consequence of energy conservation and is used to relate the voltages across various circuit elements, such as resistors and power sources, enabling the formulation of loop equations in circuit analysis.

System of Linear Equations

In circuit analysis, applying Kirchhoff's laws typically leads to a system of linear equations that represent the relationships between currents and voltages in the circuit. Solving these equations, using methods such as substitution, elimination, or matrix techniques, provides the values of unknown currents and voltages, making this concept crucial for analyzing electrical circuits.

Circuit Analysis

Circuit analysis involves systematically applying electrical principles, including Kirchhoff's laws, to determine the behavior (currents, voltages, power, etc.) of a circuit. This process includes identifying nodes and loops, setting up the corresponding equations based on conservation principles, and solving these equations to understand and predict the circuit's performance.
