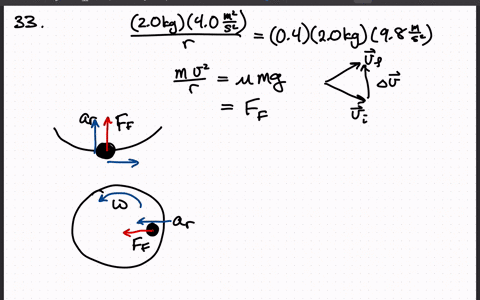

Equation Jeopardy 2 Describe using words, a sketch, a velocity change diagram, and a force diagram two situations whose mathematical description is presented below. $$ \frac{(2.0 \mathrm{kg})\left(4.0 \mathrm{m}^{2} / \mathrm{s}^{2}\right)}{r}=0.4 \times(2.0 \mathrm{kg}) \times(9.8 \mathrm{N} / \mathrm{kg}) $$

Equation Jeopardy 2 Describe using words, a sketch, a velocity change diagram, and a force diagram two situations whose mathematical description is presented below.
$$
\frac{(2.0 \mathrm{kg})\left(4.0 \mathrm{m}^{2} / \mathrm{s}^{2}\right)}{r}=0.4 \times(2.0 \mathrm{kg}) \times(9.8 \mathrm{N} / \mathrm{kg})
$$

Key Concepts

Velocity Change Diagram

A velocity change diagram, often referred to as a vector diagram in the context of motion, illustrates how the velocity vector of an object changes in magnitude or direction over time. For circular motion, while the speed may remain constant, the continual change in direction of the velocity vector results in an acceleration toward the center of the circle, which is visually represented in such a diagram.

Force Diagram

A force diagram is a visual tool that outlines all the forces acting on an object. In the context of circular motion, it typically includes the gravitational force, friction (or another source of centripetal force), and any normal forces. This diagram aids in applying Newton’s laws to determine the net force acting on the object.

Newton’s Second Law

Newton’s second law states that the net force on an object is equal to its mass multiplied by its acceleration (F = ma). This law is crucial when analyzing forces in any system, including circular motion, where the acceleration is centripetal and always directed towards the center of the circle.

Friction as a Force Provision

In problems where friction provides the necessary centripetal force, friction is modeled as the product of a coefficient (representing the interaction between surfaces) and the normal force (often the weight of the object in horizontal circular motion). Recognizing friction’s role helps in setting up the force balance required for objects to maintain circular paths.

Centripetal Force

Centripetal force is the net force required to keep an object moving in a circular path at constant speed. It is directed toward the center of the circle and is mathematically expressed as m(v²)/r, where m is the mass of the object, v is its speed, and r is the radius of the circle. This concept is foundational in analyzing any scenario involving circular motion.
