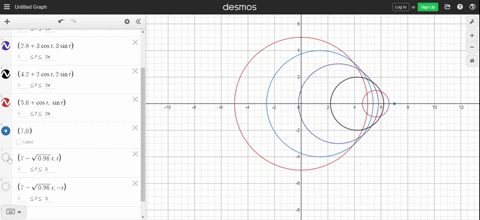

Explore the sound barrier problem discussed in the chapter introduction. Define 1 unit to be the distance traveled by sound in 1 second. Suppose that a jet has speed 0.8 unit per second (i.e., Mach 0.8 ) with position function $x(t)=0.8 t$ and $y(t)=0 .$ To model the position at time $t=5$ seconds of various sound waves emitted by the jet, do the following on one set of axes. (a) Graph the position after 5 seconds of the sound wave emitted from (0,0) (b) graph the position after 4 seconds of the sound wave emitted from (0.8,0)$;$ (c) graph the position after 3 seconds of the sound wave emitted from (1.6,0)$;$ (d) graph the position after 2 seconds of the sound wave emitted from (2.4,0)$;$ (e) graph the position after 1 second of the sound wave emitted from (3.2,0)$;$ (f) mark the position of the jet at time $t=5$

Explore the sound barrier problem discussed in the chapter introduction. Define 1 unit to be the distance traveled by sound in 1 second.
Suppose that a jet has speed 0.8 unit per second (i.e., Mach 0.8 ) with position function $x(t)=0.8 t$ and $y(t)=0 .$ To model the position at time $t=5$ seconds of various sound waves emitted by the jet, do the following on one set of axes. (a) Graph the position after 5 seconds of the sound wave emitted from (0,0) (b) graph the position after 4 seconds of the sound wave emitted from (0.8,0)$;$ (c) graph the position after 3 seconds of the sound wave emitted from (1.6,0)$;$ (d) graph the position after 2 seconds of the sound wave emitted from (2.4,0)$;$ (e) graph the position after 1 second of the sound wave emitted from (3.2,0)$;$ (f) mark the position of the jet at time $t=5$

Key Concepts

Wavefront Geometry

Wavefront geometry refers to the shape and position of the outlines of propagating waves. In the context of sound, these wavefronts are modeled as circles with radii equal to the distance the sound has traveled since it was emitted. This geometric representation helps in visualizing and analyzing the positions of the wavefronts over time, especially when they are emitted from a moving source.

Moving Source Emitting Sound Waves

When a sound source is moving, the emission points of the sound waves are shifted relative to a stationary observer. This concept involves understanding that each sound wave emitted at a different time originates from a different position, leading to a series of wavefronts that collectively illustrate the dynamic interaction between the moving source and its emitted waves.

Sound Wave Propagation

This concept deals with how sound waves travel from a point source. In a uniform medium, the sound spreads out in all directions at a constant speed, forming expanding circles (or spheres in three dimensions). Understanding this propagation is fundamental to modeling how sound travels over time from its source.

Mach Number

Mach number is the ratio of the speed of an object moving through a fluid to the speed of sound in that fluid. It is a key dimensionless quantity that characterizes whether the object is moving below, at, or above the speed of sound. This concept is crucial when analyzing phenomena related to the sound barrier and the behavior of sound waves relative to a moving source.
