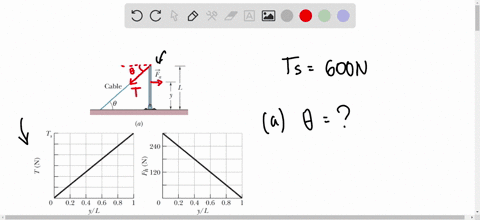

Figure $12-49 a$ shows a vertical uniform beam of length $L$ that is hinged at its lower end. A horizontal force $\vec{F}_{a}$ is applied to the beam at distance $y$ from the lower end. The beam remains vertical because of a cable attached at the upper end, at angle $\theta$ with the horizontal. Figure $12-49 b$ gives the tension $T$ in the cable as a function of the position of the applied force given as a fraction $y / L$ of the beam length. The scale of the $T$ axis is set by $T_{s}=600 \mathrm{N}$ . Figure $12-49 \mathrm{cgives}$ the magnitude $F_{h}$ of the horizontal force on the beam from the hinge, also as a function of $y / L$ . Evaluate (a) angle $\theta$ and $(b)$ the magnitude of $\vec{F}_{a} .$

Figure $12-49 a$ shows a vertical uniform beam of length $L$ that is hinged at its lower end. A horizontal force $\vec{F}_{a}$ is applied to the beam at distance $y$ from the lower end. The beam remains
vertical because of a cable attached at the upper end, at angle $\theta$
with the horizontal. Figure $12-49 b$ gives the tension $T$ in the cable
as a function of the position of the applied force given as a fraction $y / L$ of the beam length. The scale of the $T$ axis is set by $T_{s}=600 \mathrm{N}$ .
Figure $12-49 \mathrm{cgives}$ the magnitude $F_{h}$ of the horizontal force on the beam from the hinge, also as a function of $y / L$ . Evaluate (a) angle $\theta$
and $(b)$ the magnitude of $\vec{F}_{a} .$

Key Concepts

Static Equilibrium

Static equilibrium is the fundamental principle stating that the sum of forces and the sum of moments (torques) in a system must both equal zero for a body to remain at rest. This concept is crucial in structural mechanics to ensure that all external forces, such as applied loads, tension, and reaction forces at supports, are balanced.

Free Body Diagrams

A free-body diagram is a simplified representation of a body isolated from its environment with all forces and moments clearly indicated. This tool is essential for analyzing the forces acting on a structure, enabling the systematic application of equilibrium equations to solve for unknown values.

Moments and Torque

Moments (or torque) quantify the rotational effect of a force applied at a distance from a pivot or fulcrum. In static analyses, setting the net moment about a point to zero allows one to solve for unknown forces or distances, making this concept key in analyzing beams and structural elements.

Force Decomposition and Trigonometry

When forces act at angles, it becomes necessary to decompose them into their orthogonal components—typically horizontal and vertical—using trigonometric functions. This decomposition aids in applying equilibrium conditions separately in each direction, thereby simplifying the analysis of the system.

Hinge Reaction Forces

Hinge reaction forces arise in systems where a body is supported by a hinge allowing rotation. These forces generally have both horizontal and vertical components, and their determination is essential for understanding the overall force balance and ensuring the stability of the structure.
