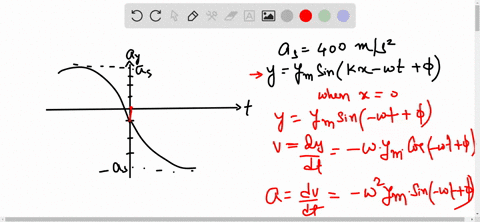

Figure 1646 shows transverse acceleration ay versus time t...

Figure 1646 shows transverse acceleration $a_{y}$ versus time $t$ of the point on a string at $x=0,$ as a wave in the form of $y(x, t)=y_{m} \sin (k x-\omega t+\phi)$ $y(x, t)=y_{m} \sin (k x-\omega t+\phi)$ passes through that point. The scale of the vertical axis is set by $a_{s}=400 \mathrm{m} / \mathrm{s}^{2} .$ What is $\phi$ ? (Caution: A calculator does not always give the proper inverse trig function, so check your answer by substituting it and an assumed value of $\omega$ into $y(x, t)$ and then plotting the function.)

Figure 1646 shows transverse acceleration $a_{y}$ versus
time $t$ of the point on a string at
$x=0,$ as a wave in the form of
$y(x, t)=y_{m} \sin (k x-\omega t+\phi)$ $y(x, t)=y_{m} \sin (k x-\omega t+\phi)$
passes through that point. The
scale of the vertical axis is set
by $a_{s}=400 \mathrm{m} / \mathrm{s}^{2} .$ What is $\phi$ ? (Caution: A calculator does not
always give the proper inverse trig function, so check your answer by
substituting it and an assumed value of $\omega$ into $y(x, t)$ and then plotting
the function.)

Key Concepts

Phase Constant

The phase constant, often denoted by ?, represents the initial angle or phase of the wave at a chosen reference point in space and time. It shifts the sine or cosine function horizontally on a graph and determines the displacement and velocity at t = 0. In problems involving sinusoidal motion, correctly identifying the phase constant is crucial for accurately describing the state of the system at the initial condition.

Transverse Acceleration in Simple Harmonic Motion

In transverse waves or simple harmonic motion, the acceleration of a point on a string is linked to its displacement by a proportionality constant, typically the negative square of the angular frequency. This relation arises because acceleration is the second derivative of displacement with respect to time. Understanding this connection is key to analyzing graphical data, such as plots of acceleration versus time, to infer the underlying wave properties including the phase constant.

Wave Equation

The wave equation describes how waves propagate through a medium. It represents the displacement of a point on the medium as a function of space and time. Key parameters in the equation are the amplitude, wave number, angular frequency, and phase constant. This equation is fundamental in understanding periodic phenomena across various fields including physics, engineering, and acoustics.
