Figure 24.49 shows a small plant near a thin lens. The ray...

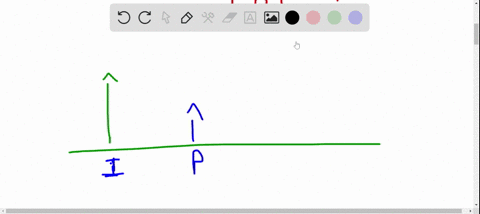

Figure 24.49 shows a small plant near a thin lens. The ray shown is one of the principal rays for the lens. Each square is $2.0 \mathrm{~cm}$ along the horizontal direction, but the vertical direction is not to the same scale. Use information from the diagram to answer the following questions: (a) Using only the ray shown, decide what type of lens (converging or diverging) this is. (b) What is the focal length of the lens? (c) Locate the image by drawing the other two principal rays. (d) Calculate where the image should be, and compare this result with the graphical solution in part (c).

Key Concepts

Graphical vs. Analytical Approaches

In optics, image formation can be analyzed both graphically through ray diagrams and analytically using mathematical formulae like the thin lens equation. While the graphical method provides a visual representation of the process, the analytical approach offers precise numerical predictions. Comparing both approaches helps in verifying the consistency and accuracy of the derived image properties.

Converging vs. Diverging Lenses

Converging (convex) and diverging (concave) lenses are two primary types of lenses distinguished by how they alter the path of light rays. Converging lenses cause parallel rays to come together at a focal point, while diverging lenses cause parallel rays to spread apart as if originating from a common point. Determining the type of lens is crucial as it affects image formation principles and the sign conventions used in calculations.

Ray Diagrams

Ray diagrams are graphical methods used to illustrate how light rays propagate through optical systems such as lenses. By drawing the principal rays, one can visually locate the image and gain insights into its properties, including size and inversion. Ray diagrams serve both as an intuitive and a practical tool in solving geometrical optics problems.

Thin Lens Equation

The thin lens equation, given by 1/f = 1/do + 1/di, is fundamental in geometrical optics. It relates the focal length (f) of a lens to the object distance (do) and the image distance (di). This equation is used to predict the formation, location, and size of the image produced by a thin lens under the assumption that the lens has negligible thickness.

Principal Rays

Principal rays are specific rays in ray diagrams that help in the construction of images through lenses. For a thin lens, the most common principal rays include the ray parallel to the optical axis (which refracts through the focal point), the ray through the center of the lens (which continues in a straight line), and the ray through the focal point (which emerges parallel to the optical axis). These rays simplify the process of locating the image formed by the lens.
