Figure 25-49 shows a parallelplate capacitor of plate area A=10.5 cm^2 and plate separation 2 d=

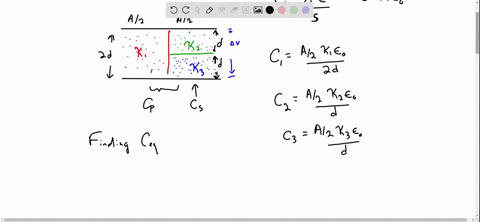

step 1 All right. So in this problem, we have a composition of three capacities. So the area is A and i

Figure 25-49 shows a parallelplate capacitor of plate area...

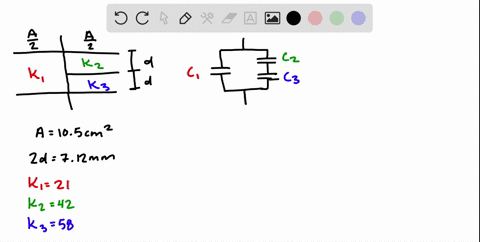

Figure $25-49$ shows a parallelplate capacitor of plate area $A=10.5$ $\mathrm{cm}^{2}$ and plate separation $2 d=7.12 \mathrm{mm} .$ The left half of the gap is filled with material of dielectric constant $\kappa_{1}=21.0$ the top of the right half is filled with material of diclectric constant $\kappa_{2}=42.0$ ; the bottom of the right half is filled with material of dielectric constant $\kappa_{3}=$ $58.0 .$ What is the capacitance?

Figure $25-49$ shows a parallelplate capacitor of plate area $A=10.5$
$\mathrm{cm}^{2}$ and plate separation $2 d=7.12 \mathrm{mm} .$
The left half of the gap is filled with material of dielectric constant $\kappa_{1}=21.0$
the top of the right half is filled with material of diclectric constant $\kappa_{2}=42.0$ ; the bottom of the right half is filled
with material of dielectric constant $\kappa_{3}=$
$58.0 .$ What is the capacitance?

Key Concepts

Parallel-Plate Capacitor

A parallel?plate capacitor consists of two conductive plates separated by an insulating gap. Its basic capacitance, which is a measure of its ability to store electric charge, depends on the plate area and the separation distance. This concept is fundamental in understanding how capacitors behave in circuits and how modifications to the plate area or gap affect the device's performance.

Dielectric Material

Dielectric materials are insulators placed between the plates of a capacitor to increase its capacitance by reducing the effective electric field and increasing the stored charge for a given voltage. Their effectiveness is quantified by the dielectric constant, which indicates the material's ability to be polarized by an electric field.

Dielectric Constant

The dielectric constant (?) is a dimensionless parameter that represents the ratio of the permittivity of the dielectric material to the permittivity of free space. It essentially measures the material’s capacity to enhance the capacitance of a capacitor when inserted between its plates, and it is crucial when dealing with capacitors containing different or multiple dielectric materials.

Composite Dielectrics in Capacitors

When multiple dielectric materials are present within the same capacitor, the overall capacitance depends on how these materials are arranged, whether in series or parallel configurations. Understanding the rules for combining capacitors in series and parallel is critical to calculating the overall capacitance of the composite system.

Series and Parallel Combination of Capacitors

The analysis of complex capacitor systems often involves decomposing the structure into simpler sections that are either in series or parallel. In a series arrangement, the reciprocal of the effective capacitance is the sum of the reciprocals of the individual capacitances, while in a parallel arrangement, the effective capacitance is the sum of the individual capacitances. This principle is key to accurately modeling and solving problems involving capacitors with non-uniform dielectric distributions.
