Figure Ex2.10 shows the velocity graph of a particle moving...

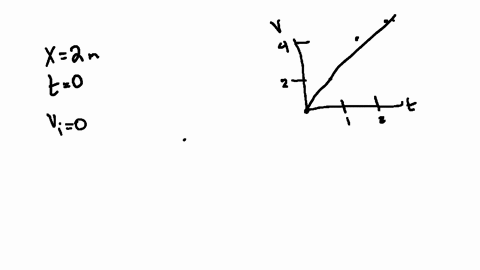

Figure Ex2.10 shows the velocity graph of a particle moving along the $x$ -axis. Its initial position is $x_{0}=2.0 \mathrm{m}$ at $t_{0}=0 \mathrm{s} .$ At $t=2.0 \mathrm{s},$ what are the particle's (a) position, (b) velocity, and
(c) acceleration?
(FIGURE CAN'T COPY)

Key Concepts

Acceleration as Derivative of Velocity

Acceleration is the rate at which velocity changes over time. Mathematically, it is the derivative of the velocity function with respect to time. By examining the slope of the velocity versus time graph, one can determine the instantaneous acceleration at any given moment, thereby understanding how quickly the particle’s velocity is increasing or decreasing.

Velocity Graph Interpretation

Interpreting a velocity versus time graph is central to understanding motion in one dimension. The graph provides instantaneous velocity at each point in time, and the area under the curve corresponds to the displacement of the particle. By analyzing the shape and key features of the graph, such as slopes and areas, one can extract relevant information needed to determine the particle's position at specific times.

Initial Conditions

Initial conditions, such as the initial position or velocity, are essential for solving motion problems because they provide the starting point required to calculate subsequent motion. In problems that involve integration of velocity to find position, the initial position acts as the constant of integration, ensuring that the computed position accurately reflects the particle’s actual starting location.

Kinematics

Kinematics is the study of motion without considering its causes. It involves understanding and relating the quantities of displacement, velocity, and acceleration. In problems concerning motion along a straight line, such as a particle moving along an axis, kinematics provides the mathematical framework for determining position, velocity, and acceleration at any given time, based on various types of graphs or equations.

Position Calculation via Integration

The position of a particle at any given time can be determined by integrating its velocity function with respect to time and adding the initial position. This method involves calculating the area under the velocity versus time graph over the relevant time intervals, treating the areas above and below the time-axis appropriately to account for direction, and then applying the initial conditions to compute the current displacement.
