Figure P 10.51 is the potential-energy diagram for a 20 g particle that is released from rest at

step 1 Solving part a of this problem so here you can write the value of e is equal to 4 joule and this

Figure P 10.51 is the potential-energy diagram for a 20 g...

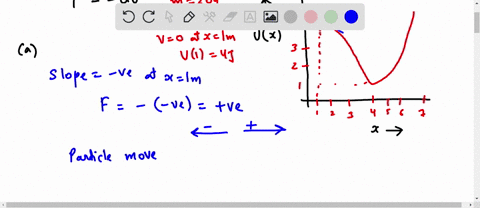

Figure $\mathrm{P} 10.51$ is the potential-energy diagram for a $20 \mathrm{g}$ particle that is released from rest at $x=1.0 \mathrm{m} .$ a. Will the particle move to the right or to the left? How can you tell? b. What is the particle's maximum speed? At what position does it have this speed? c. Where are the turning points of the motion?

Figure $\mathrm{P} 10.51$ is the potential-energy diagram for a $20 \mathrm{g}$ particle that is released from rest at $x=1.0 \mathrm{m} .$
a. Will the particle move to the right or to the left? How can you tell?
b. What is the particle's maximum speed? At what position does it have this speed?
c. Where are the turning points of the motion?

Key Concepts

Potential Energy Diagram

A potential energy diagram represents how the potential energy of a particle varies with position. It provides insights into where the particle has higher or lower potential energy, which is crucial for understanding the motion dynamics in conservative force fields.

Force and Potential Energy Relationship

The force acting on a particle is given by the negative derivative of the potential energy with respect to position. This means that the particle will accelerate in the direction that decreases its potential energy, which helps in predicting the initial movement direction when released from rest.

Conservation of Mechanical Energy

In systems where only conservative forces act, the total mechanical energy (the sum of kinetic and potential energies) remains constant. This principle allows us to relate changes in potential energy to changes in kinetic energy, and thereby determine speeds and positions during the motion.

Turning Points

Turning points in the motion are positions where the kinetic energy of the particle becomes zero because all the energy is stored as potential energy. At these points, the particle changes its direction of motion, making them key indicators in the analysis of the overall movement.

Maximum Speed Condition

The maximum speed of the particle is achieved where its potential energy is at a minimum, as this is where the difference between the total mechanical energy and the potential energy is greatest. This concept is derived directly from energy conservation, linking the minimum potential energy to the maximum kinetic energy.
