Figure P 16.4 a is a snapshot graph at t=0 s of two waves on a string approaching each other at

step 1 Hi friends this is the problem based on principle of superposition of two waves. Here it is give

Figure P 16.4 a is a snapshot graph at t=0 s of two waves on...

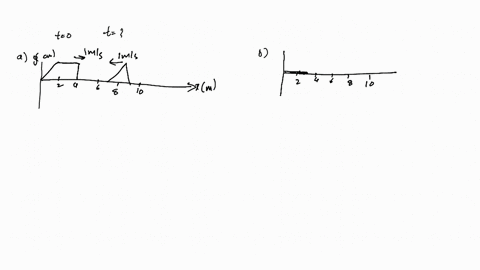

Figure $\mathrm{P} 16.4 \mathrm{a}$ is a snapshot graph at $t=0 \mathrm{s}$ of two waves on a string approaching each other at $1 \mathrm{m} / \mathrm{s}$. At what time was the snapshot graph in Figure $\mathrm{P} 16.4 \mathrm{b}$ taken? (a) $y(\mathrm{cm})$ at $t=0 \mathrm{s}$ (b) $y(\mathrm{cm})$

Figure $\mathrm{P} 16.4 \mathrm{a}$ is a snapshot graph at $t=0 \mathrm{s}$ of two waves on a string approaching each other at $1 \mathrm{m} / \mathrm{s}$. At what time was the snapshot graph in Figure $\mathrm{P} 16.4 \mathrm{b}$ taken?
(a) $y(\mathrm{cm})$ at $t=0 \mathrm{s}$
(b) $y(\mathrm{cm})$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Wave Propagation

This concept involves the movement of wave disturbances along a medium. It describes how, at a given speed, a wave's profile shifts with time from its initial position, allowing determination of its position at any moment. In string waves, the propagation speed directly relates to how far a wave segment moves within a specified time interval.

Superposition Principle

This principle states that when two or more waves travel through the same medium, their displacements at any point are algebraically summed. It is crucial for understanding the net wave profile that results from the overlap of multiple waves, especially when they travel toward each other.

Time Evolution of Waveforms

This concept emphasizes that the shape or profile of a wave is not static but changes over time as the wave propagates. By tracking how individual wave profiles evolve, one can determine time differences between snapshots, such as comparing an initial state to a later state where the waves have advanced along the medium.

Relative Motion in Waves

This involves analyzing the movement of waves coming from different directions with respect to one another. When two waves move towards each other, their approach speeds add together, affecting how quickly the overlap and interference regions change, which is key in timing observations of the wave system.
