Figure P 16.6 is a snapshot graph at t=0 s of a pulse on a string moving to the right at 1 m / s

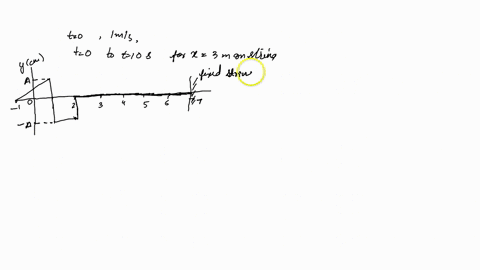

step 1 Hi everyone here it is given a snapshot graph of a pulse moving over the string towards right wi

Figure P 16.6 is a snapshot graph at t=0 s of a pulse on a...

Figure $\mathrm{P} 16.6$ is a snapshot graph at $t=0 \mathrm{s}$ of a pulse on a string moving to the right at $1 \mathrm{m} / \mathrm{s}$. The string is fixed at $x=3 \mathrm{m} .$ Draw a snapshot graph of the string at time $t=1.25 \mathrm{s}$.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Boundary Conditions in Wave Motion

Boundary conditions dictate the behavior of waves at specific locations, like fixed or free ends. In this context, the fixed boundary requires that the displacement be zero at the point of fixation, influencing the overall shape and evolution of the wave's snapshot over time.

Reflection at Fixed Boundaries

When a pulse on a string encounters a fixed end, such as a point where the string is attached, it reflects and inverts due to the boundary condition that the displacement at the fixed end must remain zero. This insight is key to predicting the shape and orientation of the pulse after reflection.

Traveling Waves

This concept describes how a disturbance, such as a pulse on a string, moves through a medium over time. The wave's shape translates laterally at a constant speed, meaning that the pulse’s profile at an initial time will appear shifted after a given time interval.

Wave Propagation Speed

Wave propagation speed is the rate at which the pulse travels along the string. Understanding how far the pulse moves in a specific amount of time (calculated by multiplying its speed by time) is essential for determining the new position of the wave at any later snapshot.
