Figure P 36.40 shows a thin glass (n=1.50) converging lens...

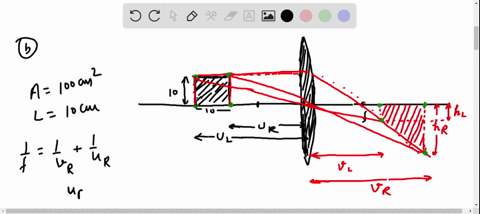

Figure $\mathrm{P} 36.40$ shows a thin glass $(n=1.50)$ converging lens for which the radii of curvature are $R_{1}=15.0 \mathrm{cm}$ and $R_{2}=-12.0 \mathrm{cm} .$ To the left of the lens is a cube having a face area of 100 $\mathrm{cm}^{2}$ . The base of the cube is on the axis of the lens, and the right face is 20.0 $\mathrm{cm}$ to the left of the lens. (a) Determine the focal length of the lens. What type of geometric figure is this? (c) Determine the area of the image.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Lensmaker's Equation

This equation is used to calculate the focal length of a thin lens based on its refractive index and the curvatures of its surfaces. It takes the form 1/f = (n - 1)(1/R? - 1/R?) when using appropriate sign conventions, and it is fundamental to understanding how lenses focus light.

Thin Lens Equation

The thin lens equation, given by 1/f = 1/d? + 1/d?, relates the object distance, image distance, and the focal length of the lens. This relationship is crucial for predicting where the image will form relative to the lens and for understanding image formation in optical systems.

Magnification

Magnification describes the ratio of the size of the image to the size of the object and is given by m = -d?/d?. In optical problems, magnification is important not only for linear dimensions but also for determining the area of the image, since the area scales as the square of the linear magnification.

Geometric Similarity

Geometric similarity refers to the property that the image and object are similar figures, meaning that corresponding angles are equal and the sides are proportional. This concept helps explain how the overall shape and area of the object transform under magnification.
