Figure P24.69 shows a radio - wave transmitter and a...

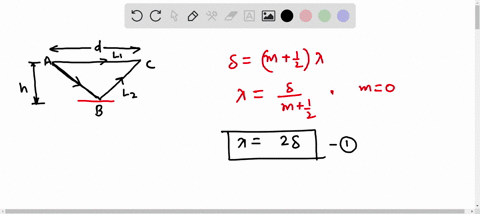

Figure P24.69 shows a radio - wave transmitter and a receiver, both $h=50.0 \mathrm{m}$ above the ground and $d=$ $6.00 \times 10^{2} \mathrm{m}$ apart. The receiver can receive signals directly from the transmitter and indirectly from signals that bounce off the ground. If the ground is level between the transmitter and receiver and a $\lambda / 2$ phase shift occurs upon reflection, determine the longest wave-lengths that interfere (a) constructively and (b) destructively.

Key Concepts

Interference

Interference arises when two or more coherent waves meet and superpose, causing regions of increased amplitude (constructive interference) or decreased amplitude (destructive interference) based on their phase relationship. This principle is fundamental in understanding phenomena such as radio wave transmission where multiple paths can lead to superposition at the receiver.

Phase Change upon Reflection

When a wave reflects from a medium with a higher refractive index or from a surface like the ground, it can experience a phase change—in this case, a ?/2 (or ? radian) phase shift. This phase shift alters the interference condition between the direct and reflected waves, making it a crucial factor in determining whether interference is constructive or destructive.

Path Difference

The difference in path lengths traveled by the waves that reach the receiver determines their relative phase at that point. The extra distance taken by the reflected wave, combined with any phase shift upon reflection, governs the interference conditions, leading to either constructive interference when the phase difference is an integer multiple of 2?, or destructive interference when it is an odd multiple of ?.

Geometrical Analysis in Wave Interference

A geometrical approach is often used to calculate the extra distance (path difference) travelled by a reflected wave compared to a direct wave. This analysis involves the heights of the transmitter and receiver, and the distance between them, and it is essential for deriving the conditions under which constructive or destructive interference will occur at a receiver.
